Wiper for BMW 3 Series E30 318i (1994)

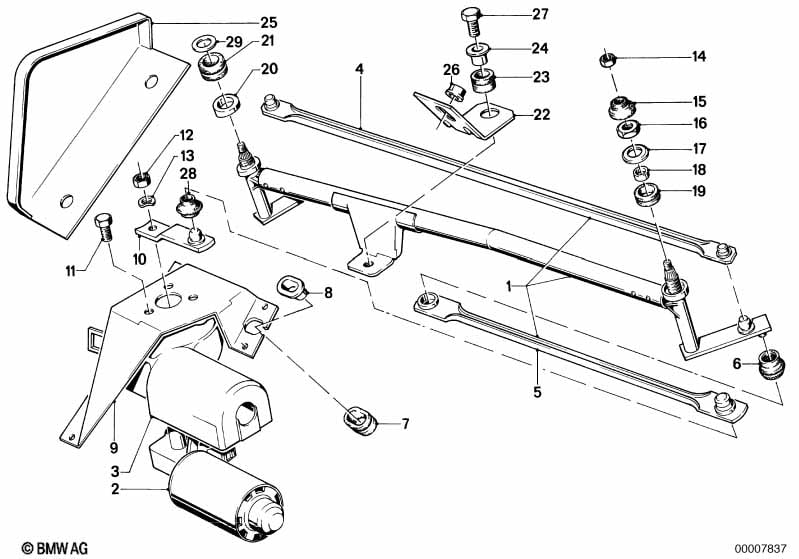

This Wiper technical drawing provides a detailed breakdown of the assembly for the 3 Series E30 318i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1994.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Linkage for wiper | 1 | 61611370822 | Shop at ECS Tuning | ||||||
| 01 | Linkage for wiper | 1 | 61612942087 | Shop at ECS Tuning | ||||||
| 02 | Wiper motor | 1 | 61611386157 | $299.69 | Shop at ECS Tuning | |||||
| 02 | Wiper motor | 1 | 61612903462 | Shop at ECS Tuning | ||||||
| 03 | Covering cap | 1 | 61601370814 | $4.16 | ENDED | Shop at ECS Tuning | ||||
| 04 | Connection rod | 1 | 61611370828 | Shop at ECS Tuning | ||||||
| 04 | Connection rod | 1 | 61612942092 | Shop at ECS Tuning | ||||||
| 05 | Drive rod | 1 | 61611370829 | $9.26 | ENDED | Shop at ECS Tuning | ||||
| 05 | Drive rod | 1 | 61612942091 | Shop at ECS Tuning | ||||||
| 06 | Rubber boot | D=16MM | 1 | 61611372782 | ENDED | Shop at ECS Tuning | ||||
| 07 | Damper ring | 3 | 61611371919 | $2.88 | ENDED | Shop at ECS Tuning | ||||
| 08 | Bushing | 3 | 61611371920 | $1.10 | ENDED | Shop at ECS Tuning | ||||
| 09 | Holder | 1 | 61611370802 | ENDED | Shop at ECS Tuning | |||||
| 10 | Motor crank arm | 1 | 61611370817 | Shop at ECS Tuning | ||||||
| 11 | Hex bolt with washer | M6X12-Z3-2 | 3 | 07119915014 | $3.47 | ENDED | Shop at ECS Tuning | |||
| 12 | Hex nut | M6-8-ZNNIV SI | 1 | 07119905543 | $0.38 | Shop at ECS Tuning | ||||
| 13 | Wave washer | B6 | 1 | 07119932072 | $0.09 | ENDED | Shop at ECS Tuning | |||
| 13 | Spring washer Black | B6-ZN | 1 | 07119932073 | $0.38 | Shop at ECS Tuning | ||||
| 13 | Washer | 5.3-140 HV-ZNS | 1 | 07119936439 | $0.40 | Shop at ECS Tuning | ||||
| 13 | Wave washer | B6-ZNS3 | 1 | 07119904496 | $1.78 | ENDED | Shop at ECS Tuning | |||
| 14 | Hex nut | M8-8-ZNNIV SI | 2 | 07119905515 | $0.16 | Shop at ECS Tuning | ||||
| 15 | Covering cap | 1 | 61611370387 | $2.16 | Shop at ECS Tuning | |||||
| 16 | Hex nut | 2 | 61618744121 | $7.09 | Shop at ECS Tuning | |||||
| 17 | Washer | 1 | 61611353835 | $0.96 | Shop at ECS Tuning | |||||
| 18 | Ring | 1 | 61611353766 | $0.45 | ENDED | Shop at ECS Tuning | ||||
| 19 | Damper ring | 18X28X6 | 1 | 61611353754 | $1.18 | Shop at ECS Tuning | ||||
| 20 | Spacer | 1 | 61611370005 | Shop at ECS Tuning | ||||||
| 21 | Damper ring | 20X33X5 | 1 | 61611355821 | $5.64 | Shop at ECS Tuning | ||||
| 22 | Holder | 1 | 61611372780 | ENDED | Shop at ECS Tuning | |||||
| 23 | Damper ring | 1 | 61611372676 | $5.48 | Shop at ECS Tuning | |||||
| 24 | Bushing | 1 | 61611372677 | $45.66 | ENDED | Shop at ECS Tuning | ||||
| 25 | Cover | 1 | 64111370997 | ENDED | Shop at ECS Tuning | |||||
| 26 | Hex nut with plate | M6 | 4 | 07147134319 | $1.05 | Shop at ECS Tuning | ||||
| 27 | Hex bolt | M6X20-U2-8.8 | 1 | 07119903995 | $0.53 | Shop at ECS Tuning | ||||
| 28 | Rubber boot f motor crank arm | D=16MM | 1 | 61611370649 | $6.02 | Shop at ECS Tuning | ||||
| 29 | Washer | 1 | 61618444182 | $4.98 | Shop at ECS Tuning |
