Single components for wiper arm for BMW 5 Series E34 525td (1995)

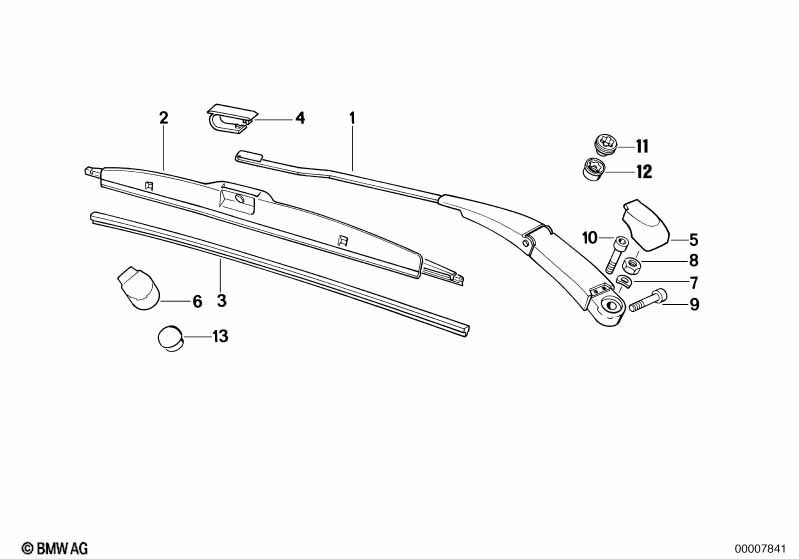

This Single components for wiper arm technical drawing provides a detailed breakdown of the assembly for the 5 Series E34 525td. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1995.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Wiper arm left | 1 | 61611384135 | $54.64 | Shop at ECS Tuning | |||||
| 01 | Wiper arm right | 1 | 61611384136 | $51.40 | ENDED | Shop at ECS Tuning | ||||
| 02 | Wiper blade right | 1 | 61618217714 | $32.82 | ENDED | Shop at ECS Tuning | ||||
| ONLY APPLIES TO CO-DRIVERS SIDE | ||||||||||
| 02 | Wiper blade | SATZ | 1 | 61618217706 | $32.82 | ENDED | Shop at ECS Tuning | |||
| 03 | Wiper rubber | 2 | 61618217711 | $15.60 | Shop at ECS Tuning | |||||
| ONLY APPLIES TO DRIVER'S SIDE | ||||||||||
| 04 | Adapter | 1 | 61611379509 | $1.35 | ENDED | Shop at ECS Tuning | ||||
| 05 | Wiper arm cover | 1 | 61618351874 | $2.55 | Shop at ECS Tuning | |||||
| 06 | Covering cap | 1 | 61611379514 | $1.45 | Shop at ECS Tuning | |||||
| 07 | Wave washer | 8,4X15-ZNS3 | 1 | 07119904115 | $0.09 | Shop at ECS Tuning | ||||
| 08 | Hex nut | M8-8-ZNS3 | 1 | 05/1999 | 07119904032 | $0.16 | Shop at ECS Tuning | |||
| 08 | Hex nut | M8-8-ZNNIV SI | 1 | 07119905515 | $0.16 | Shop at ECS Tuning | ||||
Notes
- ENDED = the part has been discontinued (no longer available).
