Single parts for windshield cleaning for BMW 5 Series E12 520 (1976)

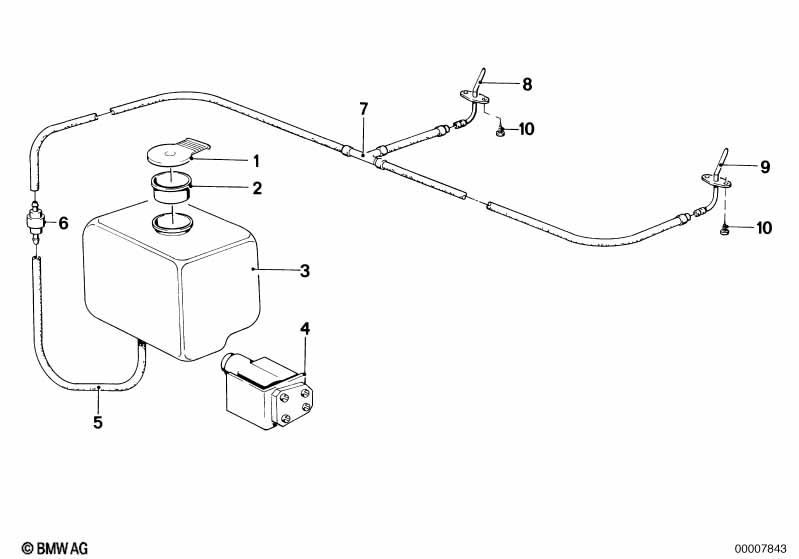

This Single parts for windshield cleaning technical drawing provides a detailed breakdown of the assembly for the 5 Series E12 520. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1976.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Cover f windshield cleaning container | 1 | 61661364807 | $5.90 | Shop at ECS Tuning | |||||
| 02 | Strainer, water tank | 1 | 61661365848 | $2.60 | Shop at ECS Tuning | |||||
| 03 | Fluid container | 1 | 61661356190 | $92.87 | Shop at ECS Tuning | |||||
| 04 | Wash pump | 1 | 61661364627 | Shop at ECS Tuning | ||||||
| 05 | Hose line | D= 4,6MM | X | 61661357388 | $5.05 | Shop at ECS Tuning | ||||
| 06 | Valve | 1 | 61661380464 | $7.71 | Shop at ECS Tuning | |||||
| 07 | Distribution piece | 1 | 61661355939 | $1.18 | Shop at ECS Tuning | |||||
| 09 | Spray nozzle | 2 | 08/1976 | 61661355187 | $9.48 | Shop at ECS Tuning | ||||
| 10 | Fillister head self-tapping screw | ST3,5X9,5-Z1 | 4 | 07119907913 | $0.13 | Shop at ECS Tuning |
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 5 Series E12 520 Single parts for windshield cleaning?
- This technical diagram illustrates the Single parts for windshield cleaning within the Vehicle electrical system group for the 5 Series E12 520 produced during 1976. It provides a detailed exploded view of the components, identifying key parts such as the Cover f windshield cleaning container (Part #61661364807).
- Which models use the hardware listed in this Single parts for windshield cleaning?
- The hardware and components featured in the Single parts for windshield cleaning are specific to the 5 Series E12 520 produced during 1976. These technical specifications ensure that parts like the Cover f windshield cleaning container (61661364807) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Single parts for windshield cleaning assembly?
- Each item in the Single parts for windshield cleaning corresponds to the numbered list below the illustration. For the 5 Series E12 520, you can identify the Cover f windshield cleaning container by locating its position on the schematic, which then links to the official BMW part number 61661364807 for the Vehicle electrical system section.
