Windshield cleaning for BMW 7 Series E32 730iL (1994)

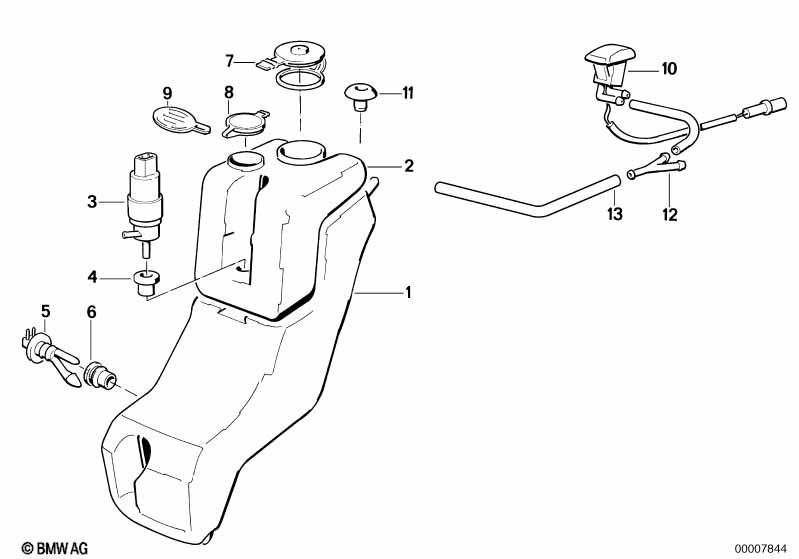

This Windshield cleaning technical drawing provides a detailed breakdown of the assembly for the 7 Series E32 730iL. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1994.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Fluid container | 3.2L | 1 | 61661378612 | $59.15 | Shop at ECS Tuning | ||||
| 02 | Fluid container | 0.9L | 1 | 61661378613 | $91.27 | Shop at ECS Tuning | ||||
| 03 | Wash pump/fluid container | 2 | 61661377830 | Shop at ECS Tuning | ||||||
| 04 | Gasket | 2 | 61661365657 | $1.17 | Shop at ECS Tuning | |||||
| 05 | Levelling switch | 1 | 03/1996 | 61311388548 | Shop at ECS Tuning | |||||
| 06 | Rubber grommet | 1 | 61311369343 | $1.93 | Shop at ECS Tuning | |||||
| 07 | Cover f windshield cleaning container | 1 | 61661364807 | $5.90 | Shop at ECS Tuning | |||||
| 08 | Cover | 1 | 61661369516 | $1.88 | Shop at ECS Tuning | |||||
| 09 | Label "concentrated cleaner" | 1 | 51141885911 | $0.50 | ENDED | Shop at ECS Tuning | ||||
| 10 | Spray nozzle | 2 | 61661379735 | $15.60 | Shop at ECS Tuning | |||||
| 10 | Heated spray nozzle | 2 | 09/1990 | 61668350355 | $37.35 | Shop at ECS Tuning | ||||
| 10 | Heated spray nozzle | 2 | 09/1990 | 61668350355 | $37.35 | Shop at ECS Tuning | ||||
| 11 | Push-button | 1 | 61661368599 | $0.53 | Shop at ECS Tuning | |||||
| 12 | Distribution piece | 2 | 61661378617 | $0.67 | Shop at ECS Tuning | |||||
| 13 | Hose line | D= 4,6MM | X | 61661357388 | $5.05 | Shop at ECS Tuning |
