Fuse box for BMW 8 Series E31 850Ci (1999)

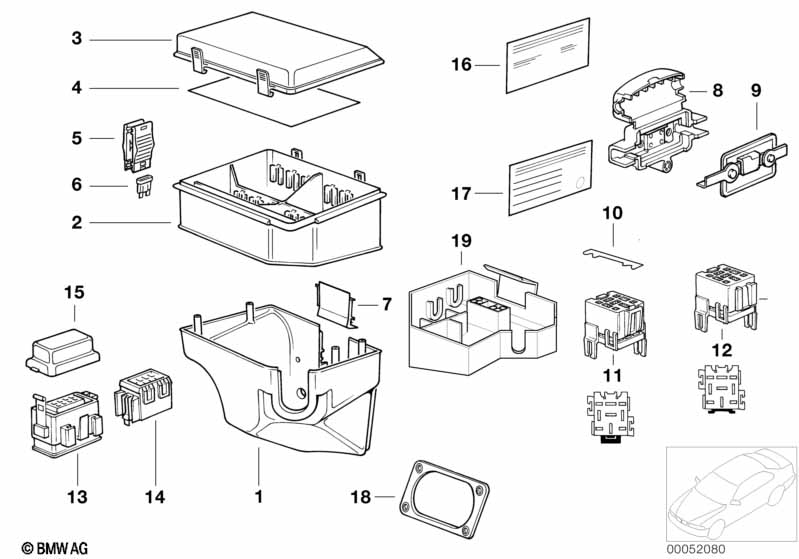

This Fuse box technical drawing provides a detailed breakdown of the assembly for the 8 Series E31 850Ci. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1999.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Wiring box | 1 | 61131383272 | $36.80 | ENDED | Shop at ECS Tuning | ||||
| 02 | Fuse box | 1 | 61131383271 | $18.50 | Shop at ECS Tuning | |||||
| 03 | Cover | 1 | 61131383273 | $19.85 | Shop at ECS Tuning | |||||
| ONLY IN CONJUNCTION WITH STICK-ON LABEL IN FUSE BOX |
||||||||||
| 04 | Stick-on label in fuse box | DEUTSCH | 1 | 09/1994 | 61138364079 | ENDED | Shop at ECS Tuning | |||
| 04 | Stick-on label in fuse box | ENGLISH | 1 | 09/1994 | 61138364080 | $12.53 | Shop at ECS Tuning | |||
| 04 | Stick-on label in fuse box | FRANCAISE | 1 | 09/1994 | 61138364081 | Shop at ECS Tuning | ||||
| 04 | Stick-on label in fuse box | ITALIANO | 1 | 09/1994 | 61138364082 | ENDED | Shop at ECS Tuning | |||
| 04 | Stick-on label | ESPANOL | 1 | 09/1994 | 61138364088 | ENDED | Shop at ECS Tuning | |||
| 05 | Fuse clip | 1 | 61131379583 | $1.10 | ENDED | Shop at ECS Tuning | ||||
| 06 | Fuse brown | 7,5A | X | 61131372524 | $0.58 | Shop at ECS Tuning | ||||
| 06 | Fuse red | 10A | X | 61131372525 | Shop at ECS Tuning | |||||
| 06 | Fuse blue | 15A | X | 61131372526 | Shop at ECS Tuning | |||||
| 06 | Fuse Maxi, yellow | 20A | X | 61131372527 | Shop at ECS Tuning | |||||
| 06 | Fuse white | 25A | X | 61131372528 | Shop at ECS Tuning | |||||
| 06 | Fuse green | 30A | X | 61131372529 | Shop at ECS Tuning | |||||
| 06 | Fuse | 25A | X | 61131372627 | $0.75 | ENDED | Shop at ECS Tuning | |||
| 06 | Fuse | 3A | X | 61131394461 | $0.75 | Shop at ECS Tuning | ||||
| 06 | Fuse orange | 40A | X | 61138364543 | $0.81 | Shop at ECS Tuning | ||||
| 07 | Intermediate piece | 1 | 61131383297 | $1.95 | ENDED | Shop at ECS Tuning | ||||
| 08 | Fuse box | 1 | 61131388270 | $17.95 | Shop at ECS Tuning | |||||
| 09 | Fuse battery cable positive | 80A | 1 | 61131382065 | $11.28 | ENDED | Shop at ECS Tuning | |||
| 10 | Fuse | B80 | 1 | 07119978840 | $0.63 | Shop at ECS Tuning | ||||
| 10 | Fuse | 50A | 1 | 61138365901 | $2.42 | Shop at ECS Tuning | ||||
| 12 | Relay holder, black white | 1 | 61131389113 | $5.32 | Shop at ECS Tuning | |||||
| 12 | Relais base black | 1 | 61131389114 | $5.32 | Shop at ECS Tuning | |||||
| 13 | Fuse carrier | 1 | 61131382196 | $14.38 | Shop at ECS Tuning | |||||
| 14 | Fuse carrier | 4X | 1 | 61131378982 | $8.35 | ENDED | Shop at ECS Tuning | |||
| 15 | Cover for fuse holder | 1 | 61131382197 | $7.10 | Shop at ECS Tuning | |||||
| 16 | Stick-on label | DEUTSCH | 1 | 61138354096 | ENDED | Shop at ECS Tuning | ||||
| 16 | Stick-on label | ENGLISH | 1 | 61138354097 | $12.53 | Shop at ECS Tuning | ||||
| 16 | Stick-on label | FRANCAISE | 1 | 61138354098 | Shop at ECS Tuning | |||||
| 16 | Stick-on label | ITALIANO | 1 | 61138354099 | ENDED | Shop at ECS Tuning | ||||
| 16 | Stick-on label | ESPANOL | 1 | 61138354100 | ENDED | Shop at ECS Tuning | ||||
| 18 | Gasket for wiring box | 1 | 61131374028 | $5.80 | ENDED | Shop at ECS Tuning | ||||
| 19 | Fuse box | 1 | 61318367250 | $138.70 | Shop at ECS Tuning | |||||
