Wiring connections-bracket for BMW 7 Series E32 730i (1994)

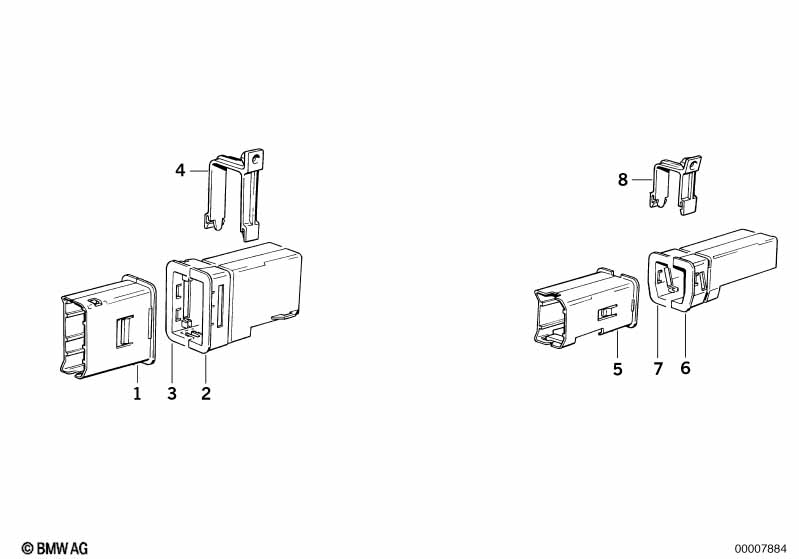

This Wiring connections-bracket technical drawing provides a detailed breakdown of the assembly for the 7 Series E32 730i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1994.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Front plug connection bracket | 2 | 61131378490 | $4.97 | ENDED | Shop at ECS Tuning | ||||
| 02 | Guide left | 2 | 61131379199 | $8.65 | ENDED | Shop at ECS Tuning | ||||
| 03 | Guide right | 2 | 61131379200 | $8.65 | ENDED | Shop at ECS Tuning | ||||
| 04 | Bracket front left | 1 | 61131379197 | $1.97 | ENDED | Shop at ECS Tuning | ||||
| 04 | Bracket front right | 1 | 61131379198 | $1.97 | ENDED | Shop at ECS Tuning | ||||
| 05 | Rear plug connection bracket | 2 | 61131378459 | $3.10 | ENDED | Shop at ECS Tuning | ||||
| 06 | Guide left | 2 | 61131379201 | $4.52 | Shop at ECS Tuning | |||||
| 07 | Guide right | 2 | 61131379202 | $4.40 | Shop at ECS Tuning | |||||
| 08 | Bracket rear left | 1 | 61131379195 | $1.83 | ENDED | Shop at ECS Tuning | ||||
| 08 | Bracket rear right | 1 | 61131379196 | $1.83 | ENDED | Shop at ECS Tuning |
