Various relays and modules for BMW 8 Series E31 850Ci (1999)

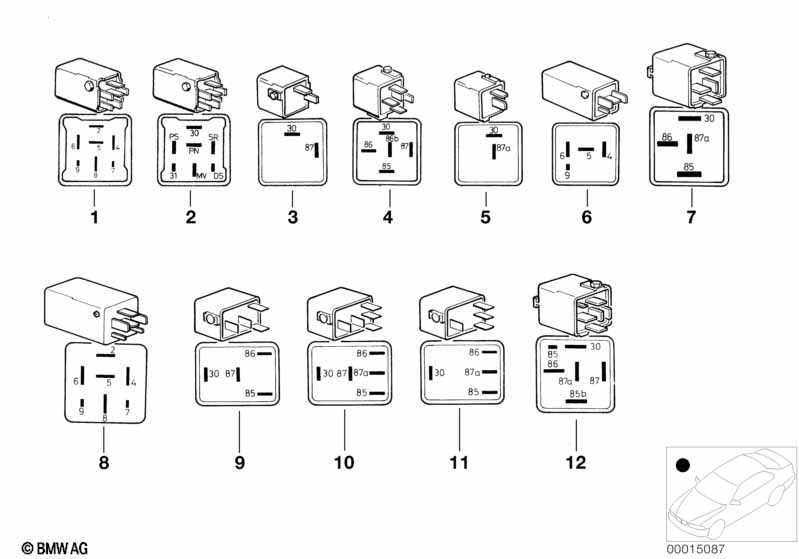

This Various relays and modules technical drawing provides a detailed breakdown of the assembly for the 8 Series E31 850Ci. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1999.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Relay module 2 | 1 | 61351383417 | $23.75 | ENDED | Shop at ECS Tuning | ||||
| 02 | Head lamp cleaning module | 1 | 61351389002 | $69.84 | Shop at ECS Tuning | |||||
| 03 | Connection plug, golden brown | 30/87 | 1 | 61368366282 | $6.12 | SI 121994675, SI 1300012, SI 612698792 | Shop at ECS Tuning | |||
| For vehicles with Auxiliary heating |
=Yes |
|||||||||
| 04 | Relay, make contact, turquoise blue | 1 | 61361388910 | $13.96 | Shop at ECS Tuning | |||||
| 05 | Plug connector, beige | 30/87A | 1 | 61368366551 | $5.78 | SI 121994675 | Shop at ECS Tuning | |||
| 06 | Relay headlight/flash | 1 | 61351392416 | $45.60 | ENDED | Shop at ECS Tuning | ||||
| 07 | Relay, change-over contact,signal violet | 1 | 61361388911 | $13.96 | Shop at ECS Tuning | |||||
| 08 | Diode relay | 1 | 61351392413 | $45.60 | ENDED | Shop at ECS Tuning | ||||
| 09 | Mini-relay contactor | 1 | 61367924276 | Shop at ECS Tuning | ||||||
| 09 | Relay | 1 | 61361393411 | $7.58 | +core | Shop at ECS Tuning | ||||
| 10 | Minirelay, change-over contact, grey | 1 | 61361393415 | $13.96 | ENDED, +core | Shop at ECS Tuning | ||||
| 10 | Mini-relay contactor | 1 | 61367924276 | Shop at ECS Tuning | ||||||
| 11 | Mini-relay for opener, blue | 1 | 61361393417 | $23.75 | Shop at ECS Tuning | |||||
| 12 | Relay, change-over contact, pine green | 1 | 61358350566 | $13.96 | Shop at ECS Tuning | |||||
Notes
- ENDED = the part has been discontinued (no longer available).
- SI = Service Information
- +core = plus core charge (possibility of a return of the old part)
