Single components for fuse box for BMW 7 Series E38 740i (2001)

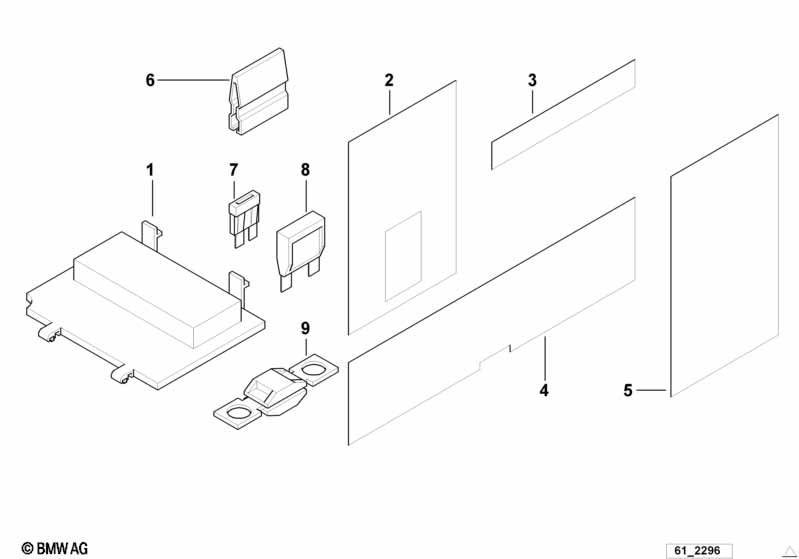

This Single components for fuse box technical drawing provides a detailed breakdown of the assembly for the 7 Series E38 740i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2001.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | PARTS F CTRL UNIT BOX, REFER TO HG-12 | |||||||||
| 01 | Fuse box cover | 1 | 12901747703 | $9.24 | Shop at ECS Tuning | |||||
| ONLY IN CONJUNCTION WITH STICK-ON LABEL IN FUSE BOX |
||||||||||
| 02 | Stick-on label, fuse grouping, front | DEUTSCH | 1 | 09/1998 | 61138385511 | Shop at ECS Tuning | ||||
| 02 | Stick-on label, fuse grouping, front | ENGLISH | 1 | 09/1998 | 61138385512 | $22.72 | ENDED | Shop at ECS Tuning | ||
| 02 | Stick-on label, fuse grouping, front | FRANCAIS | 1 | 09/1998 | 61138385513 | Shop at ECS Tuning | ||||
| 02 | Stick-on label, fuse grouping, front | ITALIANO | 1 | 09/1998 | 61138385514 | ENDED | Shop at ECS Tuning | |||
| 02 | Stick-on label, fuse grouping, front | ESANOL | 1 | 09/1998 | 61138385515 | ENDED | Shop at ECS Tuning | |||
| 05 | Stick-on label, fuse grouping, rear | DEUTSCH | 1 | 09/1998 | 61138385517 | ENDED | Shop at ECS Tuning | |||
| 05 | Stick-on label, fuse grouping, rear | DEUTSCH | 1 | 03/2000 | 61136908966 | ENDED | Shop at ECS Tuning | |||
| 05 | Stick-on label, fuse grouping, rear | ENGLISH | 1 | 03/2000 | 61136908967 | $6.17 | ENDED | Shop at ECS Tuning | ||
| 05 | Stick-on label, fuse grouping, rear | FRANCAISE | 1 | 03/2000 | 61136908968 | ENDED | Shop at ECS Tuning | |||
| 05 | Stick-on label, fuse grouping, rear | ITALIANO | 1 | 03/2000 | 61136908969 | ENDED | Shop at ECS Tuning | |||
| 05 | Stick-on label, fuse grouping, rear | ESPANOL | 1 | 03/2000 | 61136908970 | ENDED | Shop at ECS Tuning | |||
| 06 | Fuse clip | 1 | 61131379583 | $1.10 | ENDED | Shop at ECS Tuning | ||||
| 07 | Fuse red | 10A | X | 07/2017 | 61131372525 | Shop at ECS Tuning | ||||
| 07 | Fuse | 30A | X | 07/2017 | 61131372628 | $0.75 | ENDED | Shop at ECS Tuning | ||
| 07 | Fuse light brown | 5A | X | 61131372523 | Shop at ECS Tuning | |||||
| 07 | Fuse blue | 15A | X | 61131372526 | Shop at ECS Tuning | |||||
| 07 | Fuse Maxi, yellow | 20A | X | 61131372527 | Shop at ECS Tuning | |||||
| 07 | Fuse | 25A | X | 61131372627 | $0.75 | ENDED | Shop at ECS Tuning | |||
| 07 | Fuse white | 25A | X | 61131372528 | Shop at ECS Tuning | |||||
| 07 | Fuse green | 30A | X | 61131372529 | Shop at ECS Tuning | |||||
| 07 | Fuse | 5A | X | 61131386626 | $0.75 | ENDED | Shop at ECS Tuning | |||
| 07 | Fuse orange | 40A | X | 61138364543 | $0.81 | Shop at ECS Tuning | ||||
| 08 | Fuse Maxi, blue | 60A | X | 61136914636 | $2.15 | Shop at ECS Tuning | ||||
| 08 | Fuse Maxi, orange | 40A | X | 61138367132 | $1.83 | Shop at ECS Tuning | ||||
| 08 | Fuse Maxi, green | 30A | X | 61138367146 | $2.78 | Shop at ECS Tuning | ||||
| 08 | Fuse Maxi, red | 50A | X | 61138367154 | $2.15 | Shop at ECS Tuning | ||||
| 09 | Fuse | 100A | X | 61138364631 | $2.93 | Shop at ECS Tuning | ||||
| 09 | Fuse | 50A | X | 61138365901 | $2.42 | Shop at ECS Tuning | ||||
| 09 | Fuse | 80A | X | 61138365903 | $2.42 | Shop at ECS Tuning | ||||
| 09 | Fuse | 200A | X | 61138365905 | $8.23 | Shop at ECS Tuning | ||||
Notes
- ENDED = the part has been discontinued (no longer available).
