Single parts for windshield cleaning for BMW 7 Series E38 740iL (1996)

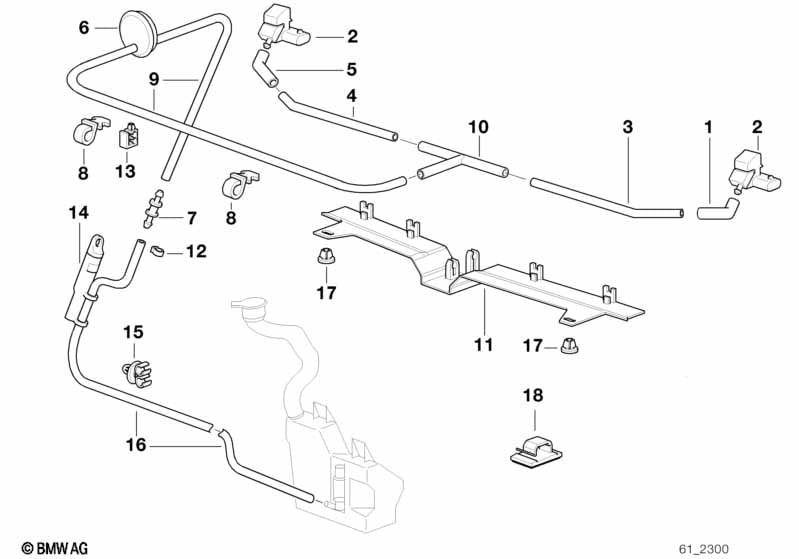

This Single parts for windshield cleaning technical drawing provides a detailed breakdown of the assembly for the 7 Series E38 740iL. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1996.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Connection piece | 1 | 04/1995 | 08/1996 | 61668360179 | $2.33 | Shop at ECS Tuning | |||
| 02 | Heated spray nozzle | 2 | 04/1995 | 08/1996 | 61668364444 | $37.35 | Shop at ECS Tuning | |||
| 03 | Left hose | 1 | 04/1995 | 08/1996 | 61668364757 | $25.67 | ENDED | Shop at ECS Tuning | ||

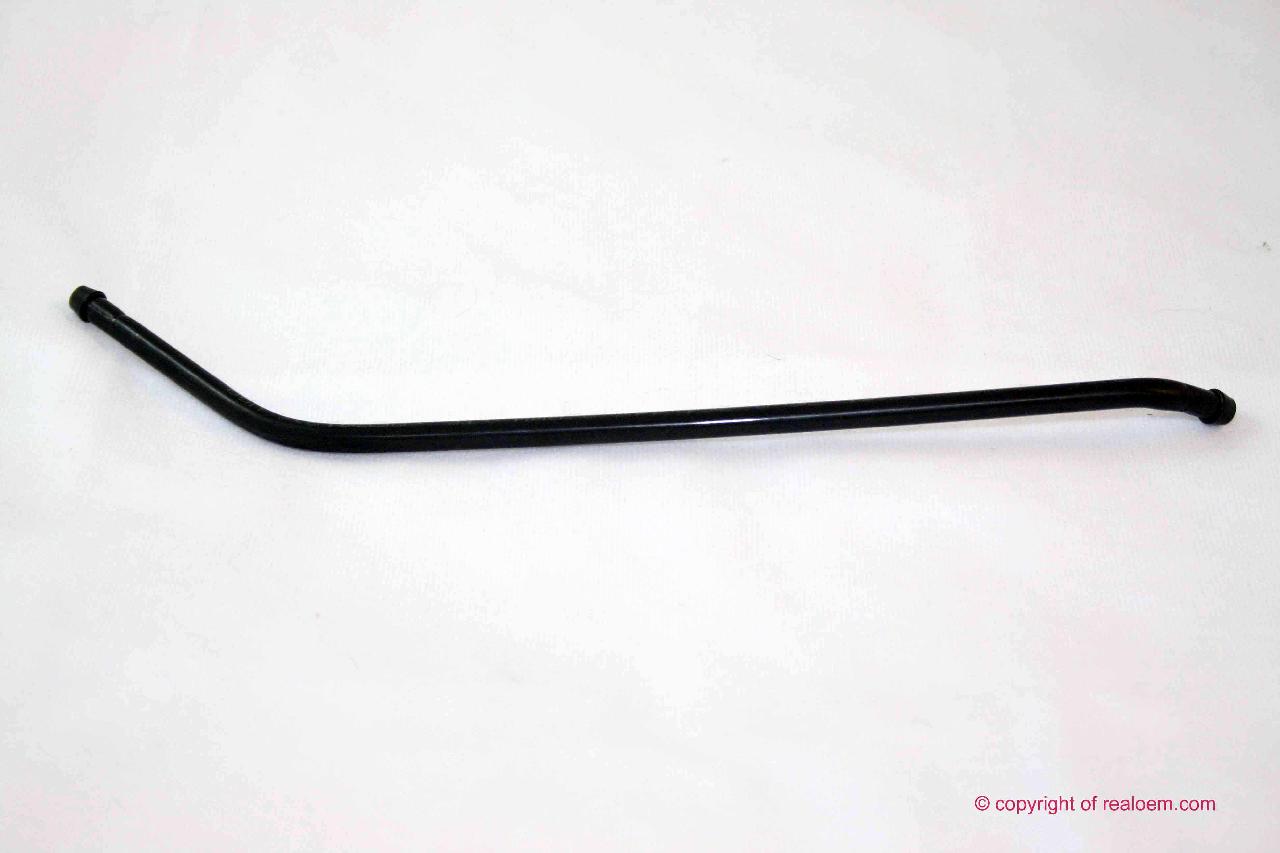

| 04 | Right hose | 1 | 04/1995 | 08/1996 | 61668364446 | $15.75 | Shop at ECS Tuning | |||

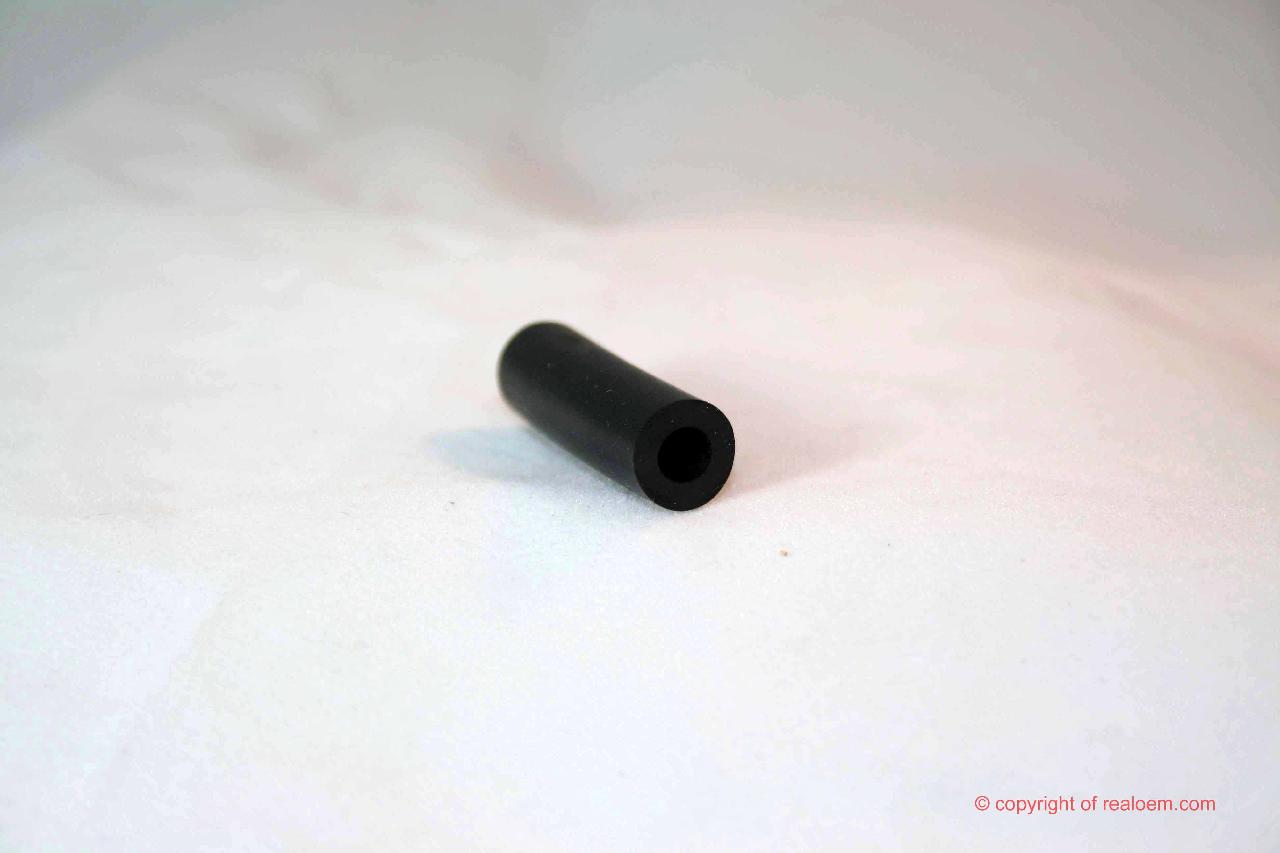

| 05 | Connection piece | 1 | 04/1995 | 08/1996 | 61668364450 | $3.88 | Shop at ECS Tuning | |||
| 06 | Windshield cleaning grommet | 1 | 04/1995 | 08/1996 | 61668360415 | $2.33 | Shop at ECS Tuning | |||
| 07 | Connection piece | 1 | 04/1995 | 08/1996 | 61661382908 | $0.48 | Shop at ECS Tuning | |||
| 08 | Connection piece | 2 | 04/1995 | 08/1996 | 61668369078 | $3.92 | Shop at ECS Tuning | |||
| 09 | Center hose | 1 | 04/1995 | 08/1996 | 61668360185 | $21.18 | Shop at ECS Tuning | |||
| 10 | Distribution piece | 1 | 04/1995 | 08/1996 | 61668364452 | $20.25 | Shop at ECS Tuning | |||
| 11 | Supporting rail f hose in engine hood | 1 | 04/1995 | 08/1996 | 61668360180 | $12.38 | Shop at ECS Tuning | |||
| 12 | Hose clamp | 8-9.5MM | 2 | 04/1995 | 08/1996 | 16131379229 | $0.72 | Shop at ECS Tuning | ||
| 13 | Tubing support | X | 04/1995 | 08/1996 | 61131361243 | $1.77 | Shop at ECS Tuning | |||
| FOR FITTING SEE REPAIR MANUAL | ||||||||||
| 13 | Tubing support | D=6MM | X | 04/1995 | 08/1996 | 61131379087 | $0.72 | Shop at ECS Tuning | ||
| FOR FITTING SEE REPAIR MANUAL | ||||||||||
| 14 | Hose clamp | 1 | 04/1995 | 08/1996 | 61668360139 | $2.33 | Shop at ECS Tuning | |||
| 15 | Tubing support | 1 | 04/1995 | 08/1996 | 61668360485 | $2.05 | Shop at ECS Tuning | |||
| 16 | Hose line | D= 4,6MM | X | 04/1995 | 08/1996 | 61661357388 | $5.05 | Shop at ECS Tuning | ||
| 17 | Expanding rivet | 2 | 04/1995 | 08/1996 | 51481938725 | $0.37 | Shop at ECS Tuning | |||
| REPAIR SOLUTION TO FASTEN HOSE TO ENGINE HOOD |
||||||||||
| 18 | Tubing support | X | 61131361243 | $1.77 | Shop at ECS Tuning | |||||
Notes
- ENDED = the part has been discontinued (no longer available).
