Various switches for BMW 5 Series E39 525d (2003)

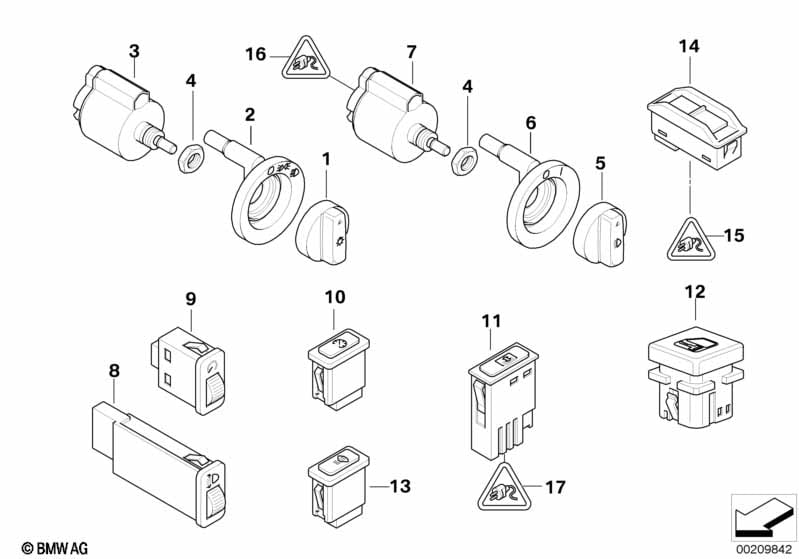

This Various switches technical drawing provides a detailed breakdown of the assembly for the 5 Series E39 525d. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2003.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Light switch button | 1 | 61318352222 | $5.78 | ENDED | Shop at ECS Tuning | ||||
| 02 | Light switch covering | 1 | 61318363685 | $17.92 | Shop at ECS Tuning | |||||
| Suitable for automatic light facility only |
||||||||||
| 02 | Light switch covering | 1 | 09/2001 | 61316909780 | $17.92 | Shop at ECS Tuning | ||||
| 03 | Light switch | 1 | 61318363683 | $44.90 | Shop at ECS Tuning | |||||
| Suitable for automatic light facility only |
||||||||||
| 03 | Light switch | 1 | 09/2001 | 61316909779 | $44.90 | Shop at ECS Tuning | ||||
| 04 | Hex nut f light switch | 2 | 61318352261 | $0.38 | Shop at ECS Tuning | |||||
| 05 | Fog lamp switch button | 1 | 61316911041 | $5.78 | Shop at ECS Tuning | |||||
| 06 | Foglamp switch covering | 1 | 09/1999 | 61316903953 | $17.92 | Shop at ECS Tuning | ||||
| 06 | Rear fog light switch cover | 1 | 09/1999 | 61316901866 | $17.92 | Shop at ECS Tuning | ||||
| 07 | Switch fog lamp and fog tail lamp | 1 | 09/1999 | 61316901342 | $44.90 | Shop at ECS Tuning | ||||
| 07 | Switch fog tail light | 1 | 09/1999 | 61316901343 | $44.90 | +core | Shop at ECS Tuning | |||
| 08 | Switch head light aim control | 1 | 61318360460 | $44.90 | Shop at ECS Tuning | |||||
| 09 | Light intensity regulator | 1 | 61318360461 | $62.85 | +core | Shop at ECS Tuning | ||||
| 10 | Cruise control switch | 1 | 61318360462 | $80.19 | Shop at ECS Tuning | |||||
| 11 | Switch sun blind | 1 | 61318360893 | $144.19 | Shop at ECS Tuning | |||||
| 12 | Central locking system switch | 1 | 61318360828 | $73.75 | Shop at ECS Tuning | |||||
| 17 | Universal socket housing uncoded | 6 POL. MQS | 1 | 61136954554 | $4.23 | Shop at ECS Tuning | ||||
| only in conjunction with | ||||||||||
| -- | Contact bushing MQS with cable | 0,2- 0,5 QMM | X | 61130005197 | $1.65 | Shop at ECS Tuning | ||||
Notes
- ENDED = the part has been discontinued (no longer available).
- +core = plus core charge (possibility of a return of the old part)
