Various switches/cigar lighter for BMW 5 Series E39 525i (2003)

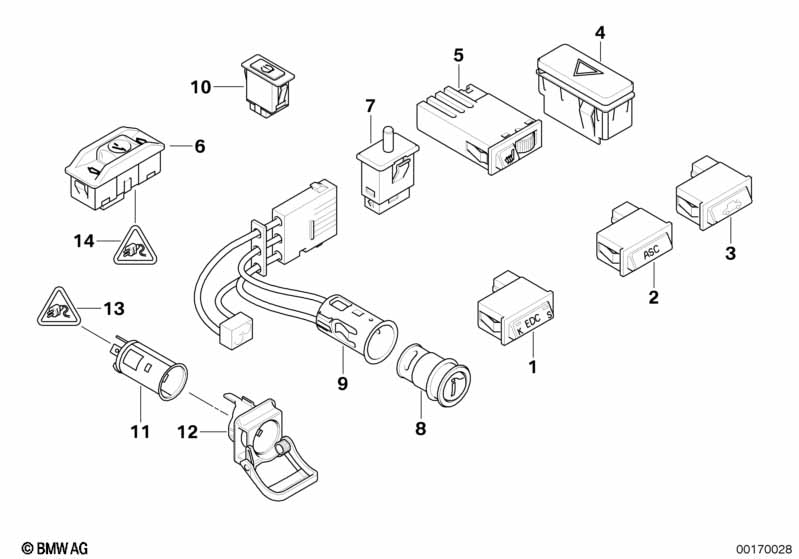

This Various switches/cigar lighter technical drawing provides a detailed breakdown of the assembly for the 5 Series E39 525i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2003.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 03 | Trunk unlocking switch | 1 | 61318365579 | $73.75 | Shop at ECS Tuning | |||||
| 04 | Hazard warning switch | 1 | 61318350947 | $32.07 | Shop at ECS Tuning | |||||
| 06 | Switch sliding roof | 1 | 61316907288 | $66.71 | Shop at ECS Tuning | |||||
| 07 | Switch | 1 | 61311388277 | ENDED | Shop at ECS Tuning | |||||
| 08 | Lighter element | 1 | 03/1997 | 61349308246 | Shop at ECS Tuning | |||||
| 10 | Switch tire pressure control | 1 | 61318375413 | $44.25 | Shop at ECS Tuning | |||||
| 14 | Rep. kit for socket housing | 6 POL. | 1 | 61132359992 | Shop at ECS Tuning | |||||
| only in conjunction with | ||||||||||
| -- | Contact bushing MQS with cable | 0,2- 0,5 QMM | 6 | 61130005197 | $1.65 | Shop at ECS Tuning | ||||
| -- | Contact bushing MQS with cable | 0,5-0,75 MM² AG | 6 | 61130056960 | Shop at ECS Tuning | |||||
Notes
- ENDED = the part has been discontinued (no longer available).
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 5 Series E39 525i Various switches/cigar lighter?
- This technical diagram illustrates the Various switches/cigar lighter within the Vehicle electrical system group for the 5 Series E39 525i produced during 2003. It provides a detailed exploded view of the components, identifying key parts such as the Trunk unlocking switch (Part #61318365579).
- Which models use the hardware listed in this Various switches/cigar lighter?
- The hardware and components featured in the Various switches/cigar lighter are specific to the 5 Series E39 525i produced during 2003. These technical specifications ensure that parts like the Trunk unlocking switch (61318365579) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Various switches/cigar lighter assembly?
- Each item in the Various switches/cigar lighter corresponds to the numbered list below the illustration. For the 5 Series E39 525i, you can identify the Trunk unlocking switch by locating its position on the schematic, which then links to the official BMW part number 61318365579 for the Vehicle electrical system section.
