Various switches for BMW 5 Series E39 525d (2003)

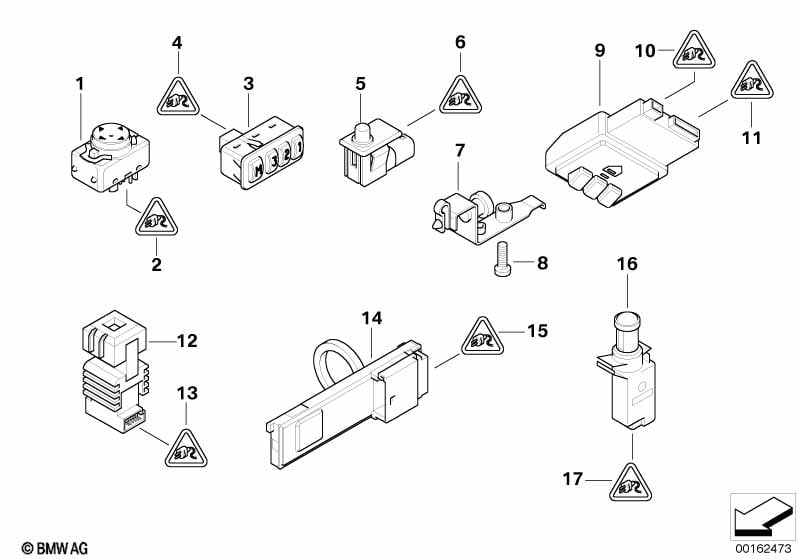

This Various switches technical drawing provides a detailed breakdown of the assembly for the 5 Series E39 525d. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2003.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Left lumbar support switch | 1 | 61318352291 | $60.61 | Shop at ECS Tuning | |||||
| 01 | Right lumbar support switch | 1 | 61318360877 | $60.61 | Shop at ECS Tuning | |||||
| 03 | Seat memory switch | 1 | 61318352160 | $101.02 | ENDED | Shop at ECS Tuning | ||||
| For vehicles with Alarm systems |
=Yes |
|||||||||
| 05 | Switch | 1 | 03/1996 | 61319119057 | $14.12 | Shop at ECS Tuning | ||||
| 06 | Rep. kit for socket housing | 3 POL. | 1 | 61132359998 | Shop at ECS Tuning | |||||
| only in conjunction with | ||||||||||
| -- | Contact bushing MQS ELA with cable | 0,5-0,75 MM² AG | 1 | 61130056384 | Shop at ECS Tuning | |||||
| -- | Contact bushing MQS ELA with cable | 0,35-0,5 MM² AG | 1 | 61130056961 | Shop at ECS Tuning | |||||
| 07 | Switch hand brake control | 1 | 61311369771 | $14.76 | Shop at ECS Tuning | |||||
| 08 | Fillister head screw | M4X8 | 1 | 07119906407 | $1.64 | Shop at ECS Tuning | ||||
| 12 | Stop light switch | 1 | 61316967601 | $32.07 | Shop at ECS Tuning | |||||
Notes
- ENDED = the part has been discontinued (no longer available).
