Horn for BMW 5 Series E39 525d (2003)

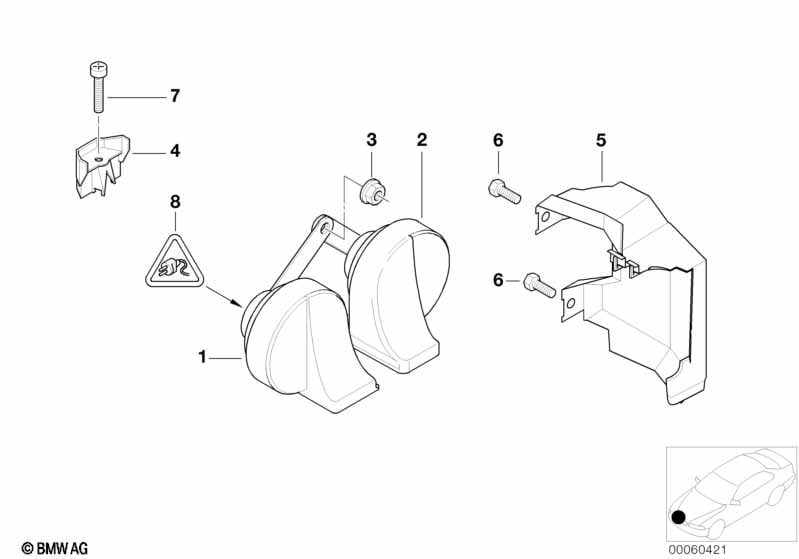

This Horn technical drawing provides a detailed breakdown of the assembly for the 5 Series E39 525d. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2003.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Horn, low pitch | 420 HZ | 1 | 61338362359 | $42.63 | Shop at ECS Tuning | ||||
| 02 | Horn, high pitch | 510 HZ | 1 | 61338362360 | $42.63 | Shop at ECS Tuning | ||||
| 03 | Collar nut | M8-8-SC-ZNNIV | 1 | 07119906089 | $0.32 | Shop at ECS Tuning | ||||
| 04 | Twist protection | 1 | 61338364460 | $9.08 | Shop at ECS Tuning | |||||
| 05 | Horn cover | 1 | 51718215248 | $10.49 | Shop at ECS Tuning | |||||
| 06 | Hex bolt | M8X16 Z2 | 2 | 07119913694 | $0.85 | Shop at ECS Tuning | ||||
| 07 | Screw for thermoplastic plastics | M7X50 | 1 | 07129900798 | Shop at ECS Tuning | |||||
| 08 | Rep. kit for socket housing | 2 POL. | 1 | 61132359999 | Shop at ECS Tuning | |||||
| only in conjunction with | ||||||||||
| -- | Contact bushing MQS ELA with cable | 0,5-0,75 MM² AG | 1 | 61130056384 | Shop at ECS Tuning | |||||
| -- | Contact bushing MQS ELA with cable | 0,35-0,5 MM² AG | X | 61130056961 | Shop at ECS Tuning | |||||
