Left wiper arm/wiper blade for BMW 5 Series E39 528i (2000)

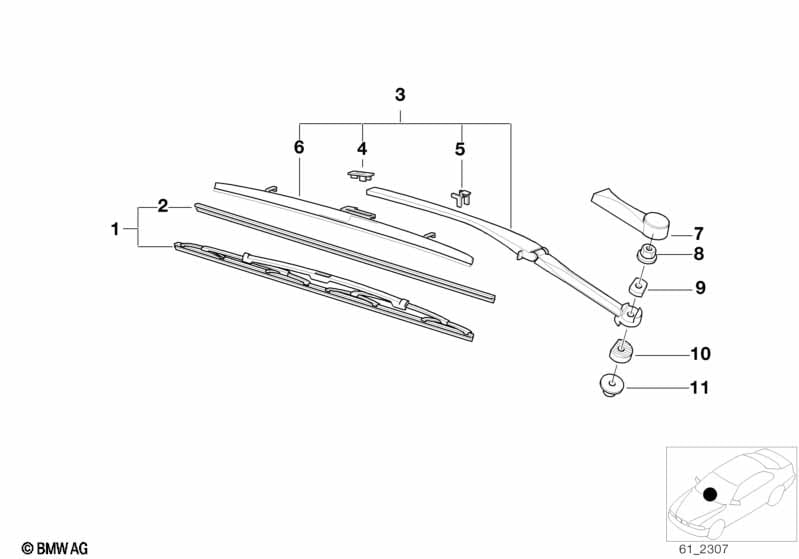

This Left wiper arm/wiper blade technical drawing provides a detailed breakdown of the assembly for the 5 Series E39 528i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2000.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Set of wiper blades | 1 | 61619070579 | $62.40 | Shop at ECS Tuning | |||||
| 02 | Wiper rubber | 1 | 61618217711 | $15.60 | Shop at ECS Tuning | |||||
| 03 | Wiper arm left | 1 | 61619449965 | Shop at ECS Tuning | ||||||
| 04 | Wiper blade locking button | 1 | 61618231740 | $1.60 | Shop at ECS Tuning | |||||
| 05 | Wiper blade guide | 1 | 61618162982 | $1.65 | Shop at ECS Tuning | |||||
| 06 | Left wiper blade spoiler | 1 | 61618162985 | $31.28 | Shop at ECS Tuning | |||||
| 07 | Cap, wiper arm, left | 1 | 61618161491 | $4.07 | Shop at ECS Tuning | |||||
| 08 | Hex nut | 1 | 07146971889 | $0.82 | Shop at ECS Tuning | |||||
| 09 | Wiper arm compensating disc | 1 | 61618161493 | $3.83 | Shop at ECS Tuning | |||||
| 10 | Adjusting plate | 1 | 61618161494 | $8.22 | Shop at ECS Tuning | |||||
| 11 | Left wiper axle gasket | 1 | 61618169254 | $3.77 | Shop at ECS Tuning |
