Right wiper arm/wiper blade for BMW 5 Series E39 530i (2002)

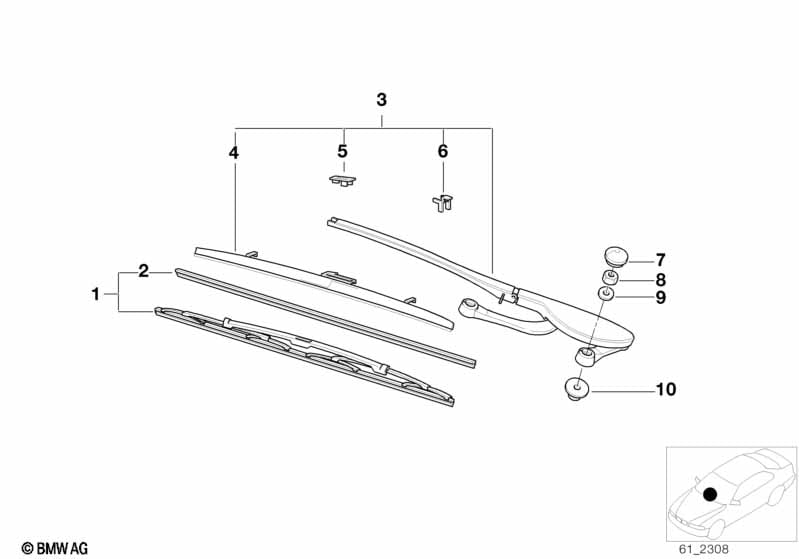

This Right wiper arm/wiper blade technical drawing provides a detailed breakdown of the assembly for the 5 Series E39 530i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2002.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Set of wiper blades | 1 | 61619070579 | $62.40 | Shop at ECS Tuning | |||||
| 02 | Wiper rubber | 1 | 61618217711 | $15.60 | Shop at ECS Tuning | |||||
| 03 | Wiper arm right | 1 | 61619449966 | Shop at ECS Tuning | ||||||
| 04 | Right wiper blade spoiler | 1 | 61618162983 | $31.28 | Shop at ECS Tuning | |||||
| 05 | Wiper blade locking button | 1 | 61618231740 | $1.60 | Shop at ECS Tuning | |||||
| 06 | Wiper blade guide | 1 | 61618162982 | $1.65 | Shop at ECS Tuning | |||||
| 07 | Cover cap, window washer axle | 2 | 61615A3F9D8 | Shop at ECS Tuning | ||||||
| 08 | Hex nut | M8-8-ZNNIV SI | 2 | 07119905515 | $0.16 | Shop at ECS Tuning | ||||
| 09 | Wave washer | 8,4X15-ZNS3 | 2 | 07119904115 | $0.09 | Shop at ECS Tuning | ||||
| 10 | Right wiper axle gasket | 2 | 61618353813 | $3.77 | Shop at ECS Tuning |
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 5 Series E39 530i Right wiper arm/wiper blade?
- This technical diagram illustrates the Right wiper arm/wiper blade within the Vehicle electrical system group for the 5 Series E39 530i produced during 2002. It provides a detailed exploded view of the components, identifying key parts such as the Set of wiper blades (Part #61619070579).
- Which models use the hardware listed in this Right wiper arm/wiper blade?
- The hardware and components featured in the Right wiper arm/wiper blade are specific to the 5 Series E39 530i produced during 2002. These technical specifications ensure that parts like the Set of wiper blades (61619070579) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Right wiper arm/wiper blade assembly?
- Each item in the Right wiper arm/wiper blade corresponds to the numbered list below the illustration. For the 5 Series E39 530i, you can identify the Set of wiper blades by locating its position on the schematic, which then links to the official BMW part number 61619070579 for the Vehicle electrical system section.
