Windshield cleaning container(intensive) for BMW 5 Series E39 525i (2003)

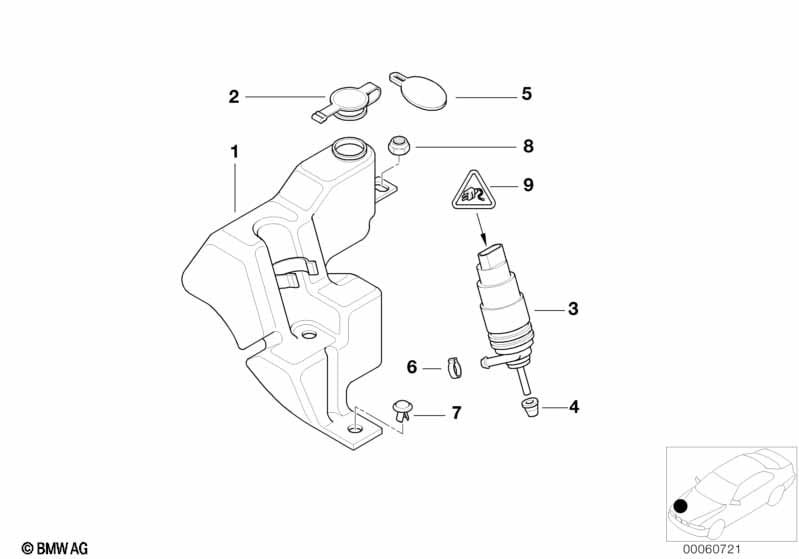

This Windshield cleaning container(intensive) technical drawing provides a detailed breakdown of the assembly for the 5 Series E39 525i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2003.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Fluid container f intensive cleaner | 1 | 61668361443 | $47.69 | Shop at ECS Tuning | |||||
| 02 | Cover | 1 | 61661369516 | $1.88 | Shop at ECS Tuning | |||||
| 03 | Washer pump rear | 1 | 09/1997 | 67128362154 | $42.75 | Shop at ECS Tuning | ||||
| 04 | Strainer f wash pump | 1 | 09/1997 | 61667006063 | $2.62 | Shop at ECS Tuning | ||||
| 05 | Label "concentrated cleaner" | 1 | 51141885911 | $0.50 | ENDED | Shop at ECS Tuning | ||||
| 06 | Hose clamp | 8-9.5MM | X | 16131379229 | $0.72 | Shop at ECS Tuning | ||||
| 07 | Expanding rivet | SCHWARZ | 1 | 51498166702 | $0.37 | Shop at ECS Tuning | ||||
| 08 | Plastic nut for coarse threaded pin | 1 | 16131183133 | $0.37 | Shop at ECS Tuning | |||||
| 09 | Universal socket housing uncoded | 2 POL. | 1 | 09/1997 | 61138364520 | $1.52 | Shop at ECS Tuning | |||
| only in conjunction with | ||||||||||
| -- | Double flat spring contact, MDK3 w. wire | 0,5-1,0 MM² AG | 1 | 09/1997 | 61130070586 | Shop at ECS Tuning | ||||
Notes
- ENDED = the part has been discontinued (no longer available).
