Filler pipe for wash container for BMW 5 Series E39 528i (1999)

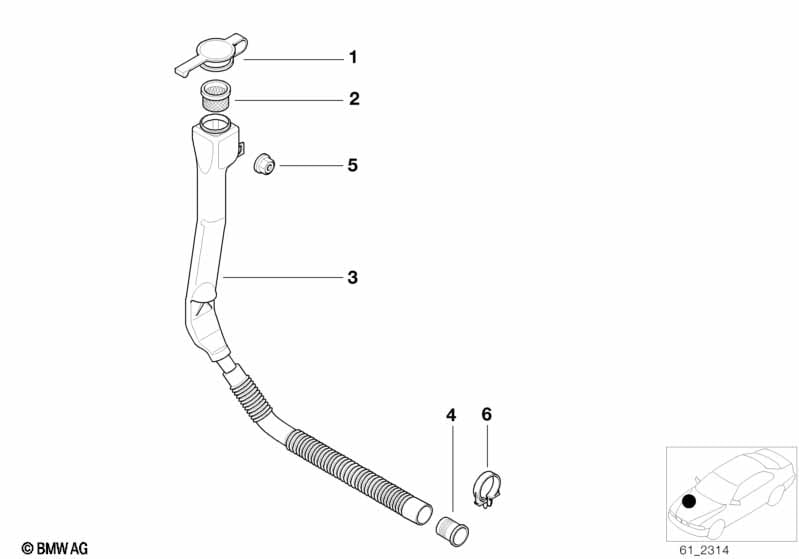

This Filler pipe for wash container technical drawing provides a detailed breakdown of the assembly for the 5 Series E39 528i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1999.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Cover | 1 | 61667467951 | Shop at ECS Tuning | ||||||

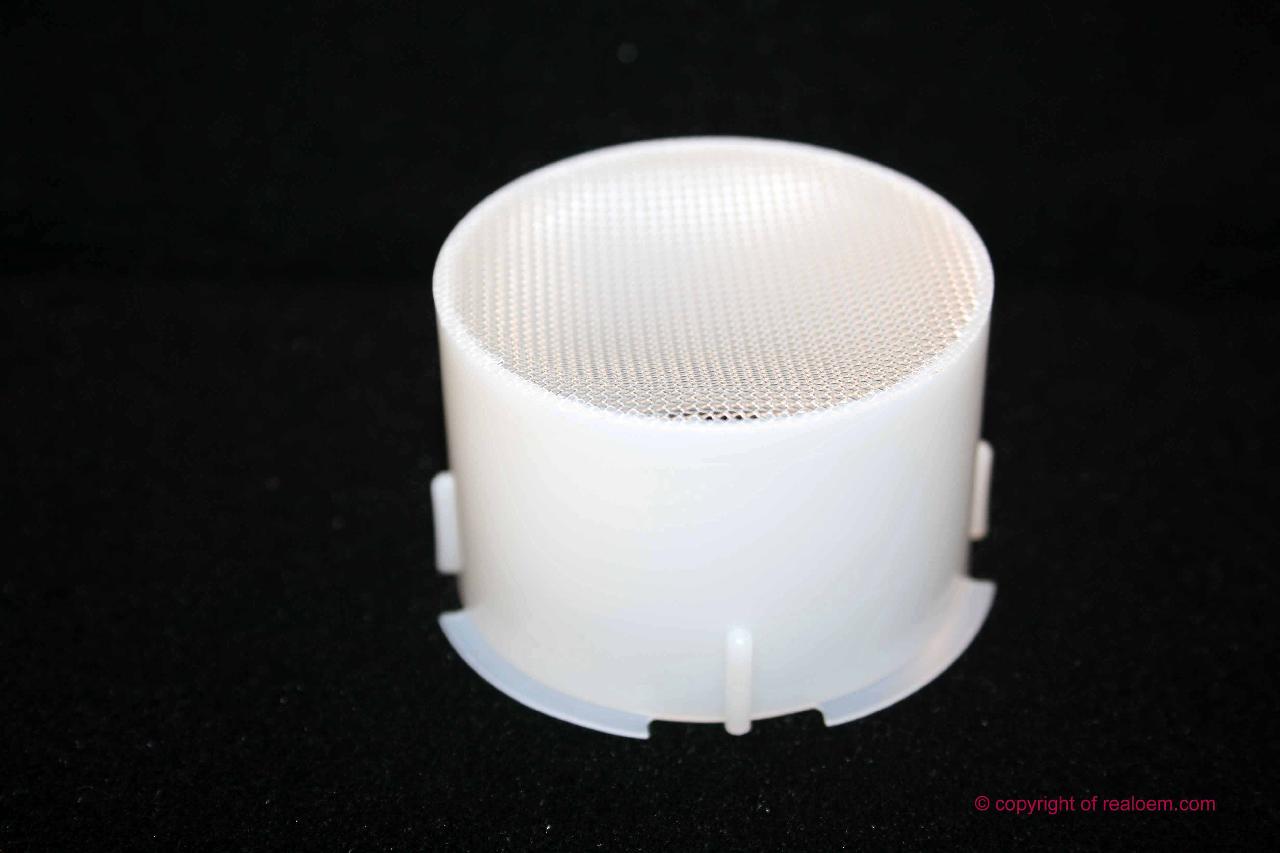

| 02 | Strainer, water tank | 1 | 09/2000 | 61661365848 | $2.60 | Shop at ECS Tuning | ||||
| 03 | Filler pipe | 1 | 10/2000 | 61607038436 | $43.40 | Shop at ECS Tuning | ||||
| only together with washer reservoir | ||||||||||
| 04 | Fluid container grommet | 1 | 10/2000 | 61668364114 | $1.53 | Shop at ECS Tuning | ||||
| 05 | Plastic nut for coarse threaded pin | 1 | 16131183133 | $0.37 | Shop at ECS Tuning | |||||
| 06 | Clamp | 1 | 09/1996 | 61668229751 | $0.53 | Shop at ECS Tuning | ||||
