Various plugs according to application for BMW 7 Series E38 740i (1998)

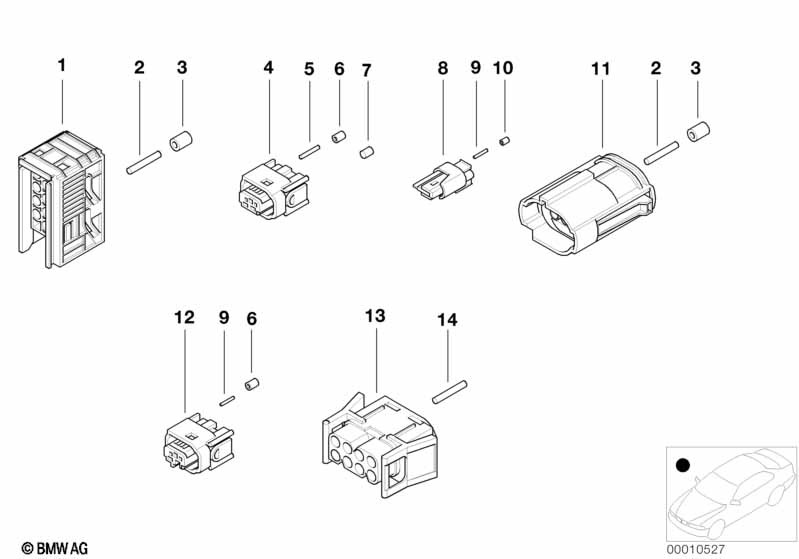

This Various plugs according to application technical drawing provides a detailed breakdown of the assembly for the 7 Series E38 740i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1998.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| Only applies to headlight | ||||||||||
| 01 | Universal socket housing uncoded | 8 POL. | 2 | 61138352576 | $8.00 | Shop at ECS Tuning | ||||
| 02 | Terminal socket 2.5 | 0.5-1.0 MM² | X | 61131392302 | $0.42 | Shop at ECS Tuning | ||||
| 03 | Single conductor seal | GRAU/0.5-1.0MM² | X | 61131383789 | $0.20 | Shop at ECS Tuning | ||||
| 03 | Single conductor seal | GELB 1.5-2.5MM² | X | 61131383791 | $0.20 | Shop at ECS Tuning | ||||
| 05 | Terminal socket MQS ELA | 0,5-0,75 MM² AG | X | 61136931880 | Shop at ECS Tuning | |||||
| 06 | Single conductor seal | 0.5-1.0MM² GN | X | 61138366245 | $0.17 | Shop at ECS Tuning | ||||
| 07 | Dummy grommet | MQS Ø=3,6 | X | 61138366249 | $0.20 | Shop at ECS Tuning | ||||
| 09 | Terminal socket MQS ELA | 0.2-0.5 MM² SN | X | 61131393704 | $0.23 | Shop at ECS Tuning | ||||
| 10 | Single conductor seal | 0,13-0,35 MM² | X | 61138366247 | $0.18 | Shop at ECS Tuning | ||||
| 14 | Snap-in receptacle 2.5 | 0,5-1,0MM² | X | 61131376202 | $0.98 | Shop at ECS Tuning | ||||
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 7 Series E38 740i Various plugs according to application?
- This technical diagram illustrates the Various plugs according to application within the Vehicle electrical system group for the 7 Series E38 740i produced during 1998. It provides a detailed exploded view of the components, identifying key parts such as the Universal socket housing uncoded (Part #61138352576).
- Which models use the hardware listed in this Various plugs according to application?
- The hardware and components featured in the Various plugs according to application are specific to the 7 Series E38 740i produced during 1998. These technical specifications ensure that parts like the Universal socket housing uncoded (61138352576) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Various plugs according to application assembly?
- Each item in the Various plugs according to application corresponds to the numbered list below the illustration. For the 7 Series E38 740i, you can identify the Universal socket housing uncoded by locating its position on the schematic, which then links to the official BMW part number 61138352576 for the Vehicle electrical system section.
