Horn for BMW 3 Series E30 325ix (1990)

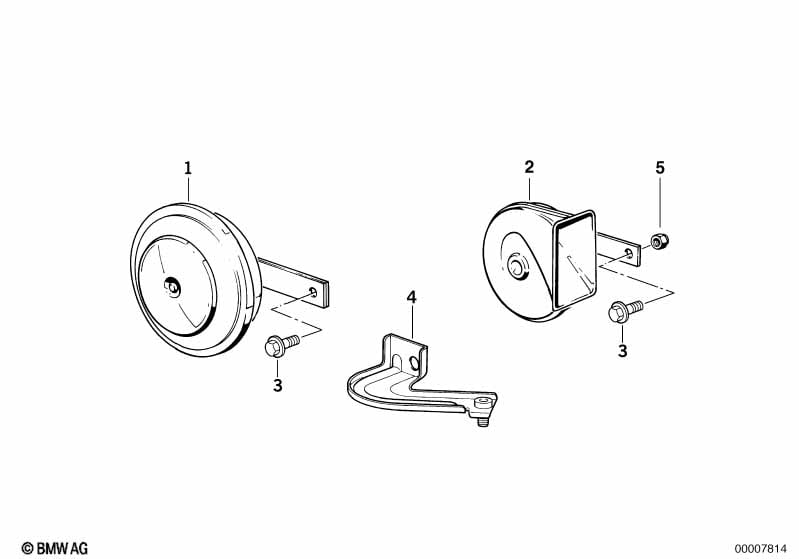

This Horn technical drawing provides a detailed breakdown of the assembly for the 3 Series E30 325ix. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1990.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | For vehicles with National version japan |
L807A=Yes |
||||||||
| 02 | Horn | FIAMM 510HZ | 1 | 09/1987 | 08/2004 | 61331386254 | $26.08 | Shop at ECS Tuning | ||
| 02 | Horn | FIAMM 510HZ | 1 | 09/1987 | 61337163992 | $26.08 | ENDED, +core | Shop at ECS Tuning | ||
| 02 | Horn | HELLA 500HZ | 1 | 09/1987 | 61331386252 | $54.69 | ENDED | Shop at ECS Tuning | ||
| 02 | Horn | HELLA 400HZ | 1 | 09/1987 | 61331386253 | $54.69 | ENDED | Shop at ECS Tuning | ||
| 02 | Horn | KLAXON 520HZ | 1 | 09/1987 | 61331388903 | ENDED | Shop at ECS Tuning | |||
| 02 | Horn | KLAXON 420HZ | 1 | 09/1987 | 61331388904 | ENDED | Shop at ECS Tuning | |||
| 02 | Horn | FIAMM 410HZ | 1 | 09/1987 | 61337163982 | ENDED | Shop at ECS Tuning | |||
| 02 | Horn | FIAMM 510HZ | 1 | 09/1987 | 61337163983 | ENDED | Shop at ECS Tuning | |||
| 02 | Horn | FIAMM 410HZ | 1 | 09/1987 | 61337163991 | $42.94 | ENDED, +core | Shop at ECS Tuning | ||
| 03 | Hex bolt | M8X16U2-8.8ZNS3 | 2 | 07119904279 | Shop at ECS Tuning | |||||
Notes
- ENDED = the part has been discontinued (no longer available).
- +core = plus core charge (possibility of a return of the old part)
