Switch, cab for BMW 5 Series E39 525d (2003)

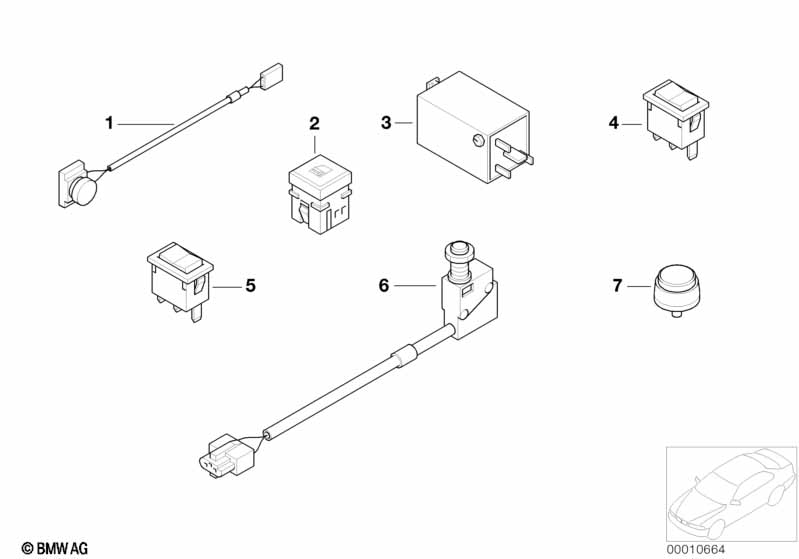

This Switch, cab technical drawing provides a detailed breakdown of the assembly for the 5 Series E39 525d. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2003.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Key button f silent alarm, floor | 1 | 61318372373 | $132.80 | ENDED, +core | Shop at ECS Tuning | ||||
| 02 | Cab alarm switch | 1 | 61318375492 | $71.59 | ENDED | Shop at ECS Tuning | ||||
| 03 | Pulse adapter | 1 | 61358370947 | $42.97 | ENDED, +core | Shop at ECS Tuning | ||||
| 04 | Rear reading light switch | TAXI | 1 | 61311391299 | $6.66 | Shop at ECS Tuning | ||||
| 05 | Switch taxi-lamp | 1 | 09/1997 | 61318378578 | ENDED, +core | Shop at ECS Tuning | ||||
| 06 | Alarm switch OFF | 1 | 61318374904 | $120.53 | ENDED, +core | Shop at ECS Tuning | ||||
| 07 | Button | 1 | 61311375882 | $14.62 | +core | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
- +core = plus core charge (possibility of a return of the old part)
