Single parts f official vehicles for BMW 5 Series E39 525d (2003)

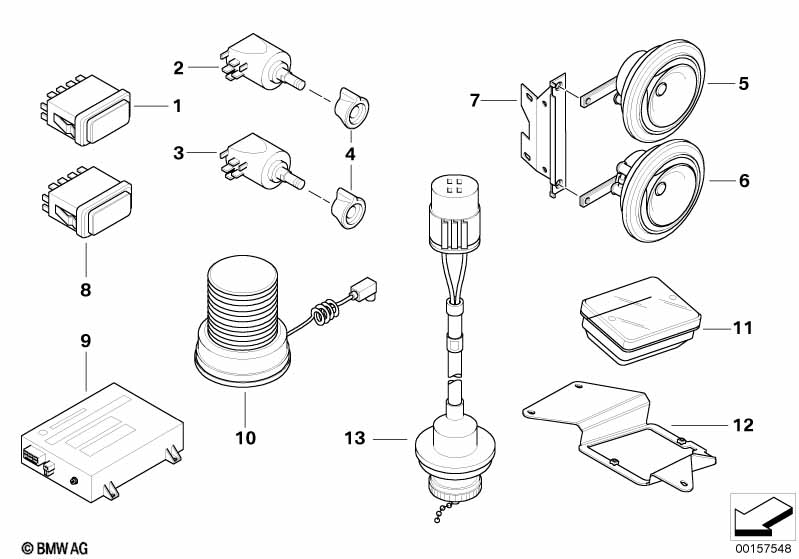

This Single parts f official vehicles technical drawing provides a detailed breakdown of the assembly for the 5 Series E39 525d. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2003.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| For vehicles with Weapon mount in headliner, front |
S129A=Yes |
|||||||||
| 01 | Switch, weapon bracket | 1 | 61318357014 | $418.50 | Shop at ECS Tuning | |||||
| For vehicles with Alarm switch with fire service circuitry or Patrol vehicle, camouflaged |
S145A=Yes S186A=Yes |
|||||||||
| 02 | Alarm switch | 1 | 61311390386 | $88.51 | ENDED | Shop at ECS Tuning | ||||
| 03 | Alarm switch | 1 | 61311390387 | $88.51 | ENDED | Shop at ECS Tuning | ||||
| 04 | Button | 1 | 61311390388 | $5.58 | ENDED | Shop at ECS Tuning | ||||
| For vehicles with Patrol vehicle, camouflaged |
S186A=Yes |
|||||||||
| 05 | Super-tone horn, low | 1 | 61338374251 | $146.18 | ENDED | Shop at ECS Tuning | ||||
| 06 | Super-tone horn, high | 1 | 61338374252 | $110.76 | Shop at ECS Tuning | |||||
| 07 | Support super-tone horns | 1 | 61338374249 | $22.60 | ENDED | Shop at ECS Tuning | ||||
| For vehicles with Unmasked official vehicle or Patrol vehicle, camouflaged |
S185A=Yes S186A=Yes |
|||||||||
| 08 | Switch radio communication | 1 | 61318357013 | $135.04 | Shop at ECS Tuning | |||||
| For vehicles with Patrol vehicle, camouflaged |
S186A=Yes |
|||||||||
| 09 | Control unit | 1 | 61338360521 | $926.28 | ENDED, +core | Shop at ECS Tuning | ||||
| 10 | Flash signalling light with magnet | 1 | 63178361271 | ENDED, +core | Shop at ECS Tuning | |||||
| 13 | Charging socket with cable | 1 | 61218361565 | Shop at ECS Tuning | ||||||
Notes
- ENDED = the part has been discontinued (no longer available).
- +core = plus core charge (possibility of a return of the old part)
