Wiring harness information for BMW 3 Series E36 320i (1999)

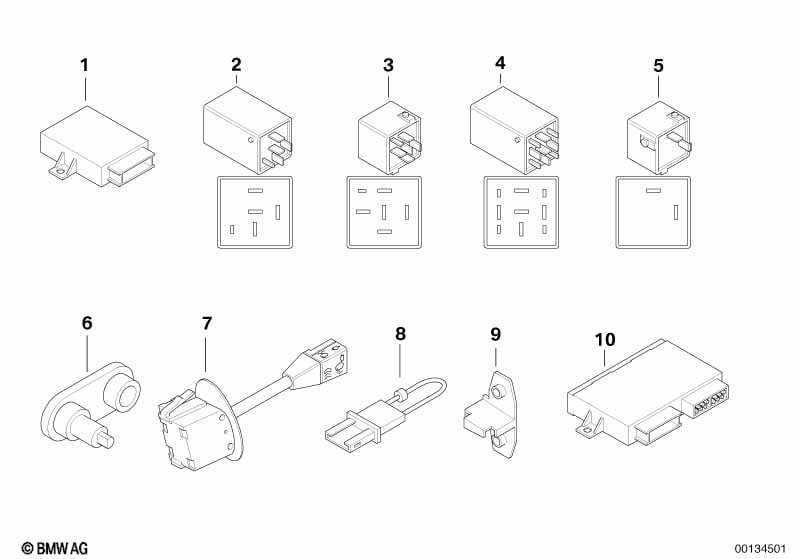

This Wiring harness information technical drawing provides a detailed breakdown of the assembly for the 3 Series E36 320i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1999.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | IMPORTANT INFORMATION this plate refers to Parts sales information of june 1993 The parts listed below are required when replacing the main wiring harness (front or rear part) corresponding to the conditions shown. |
|||||||||
| VEHICLES WITHOUT HEAD LAMP CLEANING DEV. REQUIRE ALSO |
||||||||||
| 01 | Wiper-wash-control unit | 1 | 09/1995 | 61358369474 | $104.75 | Shop at ECS Tuning | ||||
| VEHICLES WITHOUT THEFT ALARM REQUIRE ALSO |
||||||||||
| 04 | Crash alarm relay | 1 | 61358364692 | $62.85 | Shop at ECS Tuning | |||||
| Vehicles with manual transmission also require for start lock |
||||||||||
| 05 | Connection plug, golden brown | 30/87 | 1 | 61368366282 | $6.12 | SI 121994675, SI 1300012, SI 612698792 | Shop at ECS Tuning | |||
| VEHICLES WITHOUT THEFT ALARM REQUIRE ALSO |
||||||||||
| 06 | Switch | 1 | 61311368430 | $7.86 | Shop at ECS Tuning | |||||
| For vehicles with Automatic transmission and Cruise control |
S205A=Yes S540A=Yes |
|||||||||
| 08 | Bridging cable f clutch switch | 1 | 61121385400 | $25.88 | Shop at ECS Tuning | |||||
| Vehicles without anti-theft alarm system require in addition on both rear doors part numbers/option/specific parts. |
||||||||||
| 09 | Latch Striker | 1 | 51218105511 | $44.32 | SI 510691373 | Shop at ECS Tuning | ||||
Notes
- SI = Service Information
