Cable covering f trunk lid for BMW 5 Series E39 530d (2001)

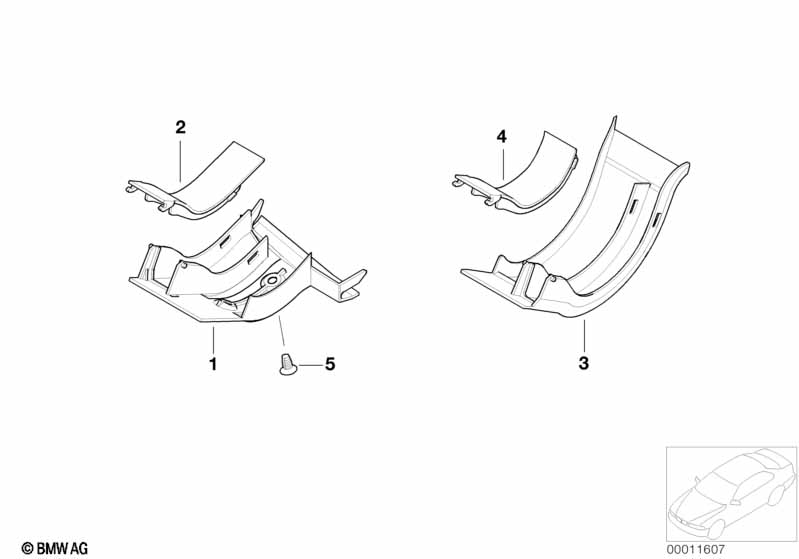

This Cable covering f trunk lid technical drawing provides a detailed breakdown of the assembly for the 5 Series E39 530d. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2001.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Covering for left cable guide | 1 | 61138364787 | $3.13 | Shop at ECS Tuning | |||||
| 01 | Covering for right cable guide | 1 | 61138364788 | $2.97 | Shop at ECS Tuning | |||||
| For vehicles with automatic trunk lid mechanism |
S316A=Yes |
|||||||||
| 01 | Covering for left cable guide | 1 | 61136905504 | $2.40 | Shop at ECS Tuning | |||||
| 02 | Cover for cable guide | 2 | 61138369624 | $1.25 | ENDED | Shop at ECS Tuning | ||||
| For vehicles with automatic trunk lid mechanism |
S316A=Yes |
|||||||||
| 02 | Covering for left cable guide | 1 | 10/1999 | 61136905505 | $3.13 | Shop at ECS Tuning | ||||
| 03 | Covering for left cable guide | 1 | 61138364789 | $3.13 | Shop at ECS Tuning | |||||
| 03 | Covering for right cable guide | 1 | 61138364790 | $2.97 | Shop at ECS Tuning | |||||
| 04 | Cover for cable guide | 2 | 61138369623 | $1.25 | Shop at ECS Tuning | |||||
| 05 | Countersunk head screw | 2 | 51478235983 | $0.89 | Shop at ECS Tuning | |||||
Notes
- ENDED = the part has been discontinued (no longer available).
