Switch unit, light for BMW 3 Series E46 320Cd (2006)

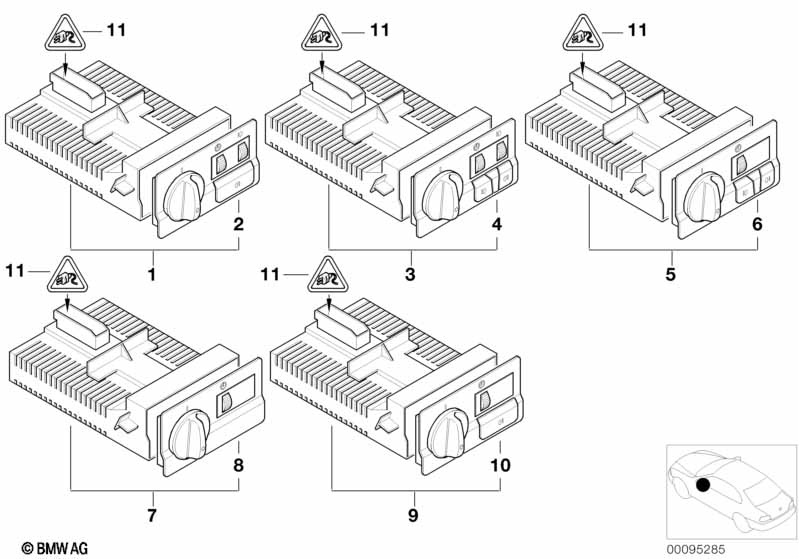

This Switch unit, light technical drawing provides a detailed breakdown of the assembly for the 3 Series E46 320Cd. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2006.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| For vehicles with Rain sensor and Xenon Light and Fog lights Suitable for automatic light facility only |
S521A=Yes S522A=No =No |
|||||||||
| 01 | Switch unit, light | 1 | 09/2001 | 61319133013 | Shop at ECS Tuning | |||||
| For vehicles with Rain sensor and Xenon Light and Fog lights |
S521A=No S522A=No =No |
|||||||||
| 01 | Switch unit, light | 1 | 09/2001 | 61319133011 | Shop at ECS Tuning | |||||
| For vehicles with Rain sensor and Xenon Light and Fog lights Suitable for automatic light facility only |
S521A=Yes S522A=No =No |
|||||||||
| 02 | control, switch unit for lights | 1 | 09/2001 | 61316911644 | Shop at ECS Tuning | |||||
| For vehicles with Rain sensor and Xenon Light and Fog lights |
S521A=No S522A=No =No |
|||||||||
| 02 | control, switch unit for lights | 1 | 09/2001 | 61318378573 | Shop at ECS Tuning | |||||
| For vehicles with Rain sensor and Xenon Light and Fog lights Suitable for automatic light facility only |
S521A=Yes S522A=No =Yes |
|||||||||
| 03 | Switch unit, light / foglamps | 1 | 09/2001 | 61319133017 | $384.76 | Shop at ECS Tuning | ||||
| For vehicles with Rain sensor and Xenon Light and Fog lights |
S521A=No S522A=No =Yes |
|||||||||
| 03 | Switch unit, light / foglamps | 1 | 09/2001 | 61319133015 | $406.73 | Shop at ECS Tuning | ||||
| For vehicles with Rain sensor and Xenon Light and Fog lights Suitable for automatic light facility only |
S521A=Yes S522A=No =Yes |
|||||||||
| 04 | Contr.pan.sw.unit light/front fog lamp | 1 | 09/2001 | 61316911645 | $256.53 | Shop at ECS Tuning | ||||
| For vehicles with Rain sensor and Xenon Light and Fog lights |
S521A=No S522A=No =Yes |
|||||||||
| 04 | Contr.pan.sw.unit light/front fog lamp | 1 | 09/2001 | 61318378572 | $128.25 | Shop at ECS Tuning | ||||
| For vehicles with Rain sensor and Xenon Light and Adaptive Headlights and Fog lights Suitable for automatic light facility only |
S521A=Yes S522A=Yes S524A=No =Yes |
|||||||||
| 05 | Switch unit, light / foglamps | 1 | 09/2001 | 61319133021 | $384.76 | Shop at ECS Tuning | ||||
| For vehicles with Rain sensor and Xenon Light and Adaptive Headlights and Fog lights |
S521A=Yes S522A=Yes S524A=Yes =Yes |
|||||||||
| 05 | Switch unit light / ALC | 1 | 09/2001 | 61319133028 | Shop at ECS Tuning | |||||
| For vehicles with Rain sensor and Xenon Light and Adaptive Headlights and Fog lights |
S521A=No S522A=Yes S524A=No =Yes |
|||||||||
| 05 | Switch unit, light / foglamps | 1 | 09/2001 | 61319133019 | $406.73 | Shop at ECS Tuning | ||||
| For vehicles with Rain sensor and Xenon Light and Adaptive Headlights and Fog lights Suitable for automatic light facility only |
S521A=Yes S522A=Yes S524A=No =Yes |
|||||||||
| 06 | Contr.pan.sw.unit light/front fog lamp | 1 | 09/2001 | 61316911646 | $256.53 | Shop at ECS Tuning | ||||
| For vehicles with Rain sensor and Xenon Light and Adaptive Headlights and Fog lights |
S521A=No S522A=Yes S524A=No =Yes |
|||||||||
| 06 | Contr.pan.sw.unit light/front fog lamp | 1 | 09/2001 | 61318378574 | $128.25 | ENDED | Shop at ECS Tuning | |||
| 11 | Covering cap | 54-POL | 1 | 61139253106 | Shop at ECS Tuning | |||||
| only in conjunction with | ||||||||||
| -- | Buchsenkontakt ELO-Power mit Kabel | 0,75-1,0 MM² SN | 4 | 61130056965 | Shop at ECS Tuning | |||||
| -- | Socket housing | 54 POL. | 1 | 61138364826 | $1.00 | Shop at ECS Tuning | ||||
| -- | Socket housing | 54 POL. | 1 | 61138364828 | $1.00 | Shop at ECS Tuning | ||||
| -- | Socket contact ELO-Power 2,8x0,63 | 1,5-2,5 MM² SN | 4 | 61138369634 | $0.55 | Shop at ECS Tuning | ||||
| -- | Socket contact ELO-Power 5,2x0,63 | 4 MM² | 2 | 61138369644 | $0.63 | Shop at ECS Tuning | ||||
| -- | Socket terminal MQS | 0.2-0.5MM²/SN | X | 61138369696 | $0.28 | Shop at ECS Tuning | ||||
| -- | Socket terminal MQS | 0.75 MM² /SN | X | 61138369700 | $0.35 | Shop at ECS Tuning | ||||
