steering-column stalk/ window lifter for BMW 3 Series E46 320Cd (2006)

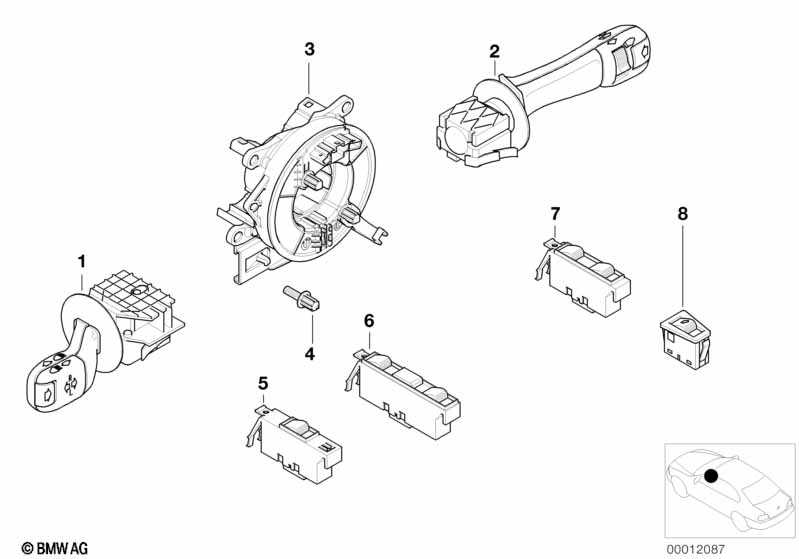

This steering-column stalk/ window lifter technical drawing provides a detailed breakdown of the assembly for the 3 Series E46 320Cd. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2006.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| For vehicles with On-board computer |
S550A=No |
|||||||||
| 01 | Switch turn signal,dip-dim control | 1 | 61318363662 | $137.88 | Shop at ECS Tuning | |||||
| For vehicles with On-board computer |
S550A=Yes |
|||||||||
| 01 | Switch turn signal,dip-dim control | 1 | 61318363668 | $137.88 | Shop at ECS Tuning | |||||
| 02 | Wiper switch | 1 | 61318363664 | $97.81 | Shop at ECS Tuning | |||||
| 03 | Switch unit steering column | 1 | 61318379091 | $144.02 | Shop at ECS Tuning | |||||
| additionally contains slip ring | ||||||||||
| 04 | Torx bolt | 4 | 61318380482 | $0.67 | Shop at ECS Tuning | |||||
| 07 | Window lifter switch, driver's side | 1 | 61316902175 | $50.53 | Shop at ECS Tuning | |||||
| 07 | Window lifter switch, passenger's side | 1 | 61316902178 | $50.53 | Shop at ECS Tuning | |||||
