Various switches/cigar lighter for BMW 3 Series E46 330d (2004)

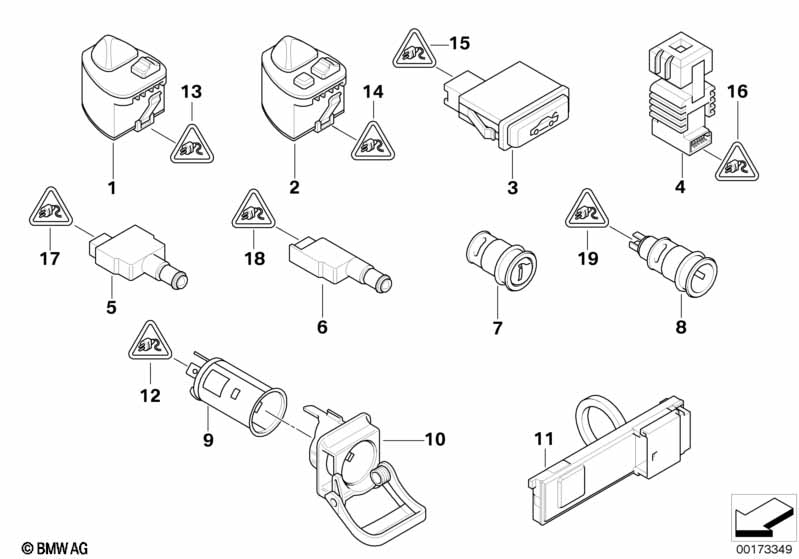

This Various switches/cigar lighter technical drawing provides a detailed breakdown of the assembly for the 3 Series E46 330d. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2004.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| For vehicles with Fold-in outside mirror and Seat adjuster, electric, with memory |
S313A=No S459A=Yes |
|||||||||
| 01 | Switch f mirror adjustment | 1 | 61316901376 | $44.90 | Shop at ECS Tuning | |||||
| For vehicles with Fold-in outside mirror and Seat adjuster, electric, with memory |
S313A=No S459A=No |
|||||||||
| 01 | Switch f mirror adjustment | 1 | 61318373692 | $44.90 | Shop at ECS Tuning | |||||
| For vehicles with Fold-in outside mirror and Seat adjuster, electric, with memory |
S313A=Yes S459A=Yes |
|||||||||
| 02 | Switch f mirror adjust./fldng bck funct. | 1 | 61316901383 | $67.34 | Shop at ECS Tuning | |||||
| For vehicles with Fold-in outside mirror and Seat adjuster, electric, with memory |
S313A=Yes S459A=No |
|||||||||
| 02 | Switch f mirror adjust./fldng bck funct. | 1 | 61318373689 | Shop at ECS Tuning | ||||||
| 03 | Trunk unlocking switch | 1 | 61318365579 | $73.75 | Shop at ECS Tuning | |||||
| 04 | Stop light switch | 1 | 61316967601 | $32.07 | Shop at ECS Tuning | |||||
| 05 | Clutch switch | 3 POL. | 1 | 09/1998 | 61318381612 | $73.75 | Shop at ECS Tuning | |||
| 07 | Lighter element | 1 | 61349308246 | Shop at ECS Tuning | ||||||

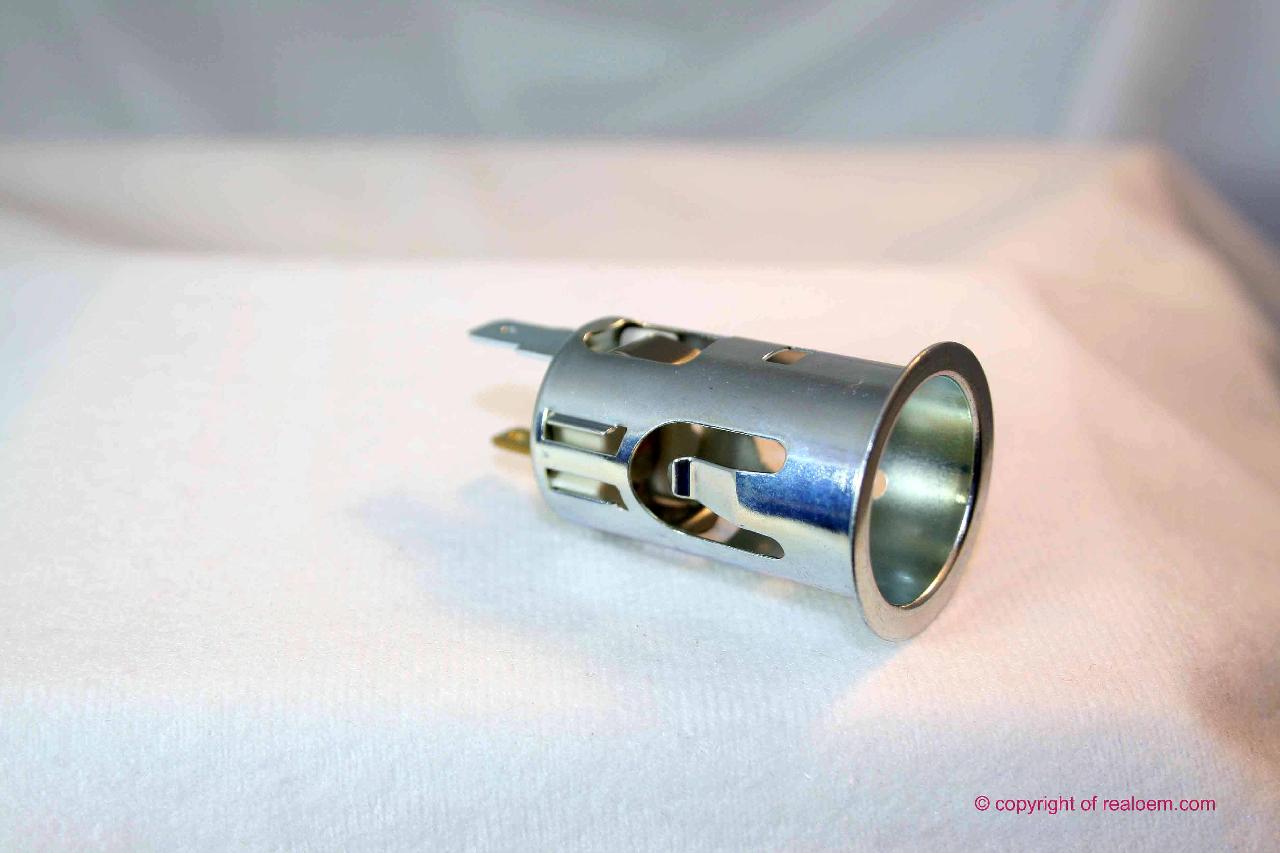

| 08 | Cigarette lighter socket | 1 | 61346973036 | $4.23 | Shop at ECS Tuning | |||||
| 09 | Plug-in socket | 1 | 61346973037 | $3.78 | Shop at ECS Tuning | |||||
| 10 | Socket mount | 1 | 61346843098 | Shop at ECS Tuning | ||||||
| 11 | Module, clutch switch | 1 | 03/2001 | 35426876898 | Shop at ECS Tuning | |||||
| 12 | Plug housing | 2 POL. | 1 | 61131351144 | $0.77 | Shop at ECS Tuning | ||||
| only in conjunction with | ||||||||||
| -- | Cable socket female | 0,5-1,0 MM² | 2 | 61131362868 | $0.68 | Shop at ECS Tuning | ||||
| 13 | Rep. kit for socket housing | 6 POL. | 1 | 61132359992 | Shop at ECS Tuning | |||||
| only in conjunction with | ||||||||||
| -- | Contact bushing MQS with cable | 0,2- 0,5 QMM | X | 61130005197 | $1.65 | Shop at ECS Tuning | ||||
| -- | Contact bushing MQS with cable | 0,5-0,75 MM² AG | X | 61130056960 | Shop at ECS Tuning | |||||
| 14 | Rep. kit for socket housing | 6 POL. | 1 | 61132359992 | Shop at ECS Tuning | |||||
| only in conjunction with | ||||||||||
| -- | Contact bushing MQS with cable | 0,2- 0,5 QMM | 6 | 61130005197 | $1.65 | Shop at ECS Tuning | ||||
| -- | Contact bushing MQS with cable | 0,5-0,75 MM² AG | 1 | 61130056960 | Shop at ECS Tuning | |||||
| 15 | Universal socket housing uncoded | 6 POL. MQS | 1 | 61136954554 | $4.23 | Shop at ECS Tuning | ||||
| only in conjunction with | ||||||||||
| -- | Contact bushing MQS with cable | 0,2- 0,5 QMM | X | 61130005197 | $1.65 | Shop at ECS Tuning | ||||
| -- | Contact bushing MQS with cable | 0,5-0,75 MM² AG | X | 61130056960 | Shop at ECS Tuning | |||||
| -- | Universal socket housing uncoded | 6 POL. MQS | 1 | 61136954554 | $4.23 | Shop at ECS Tuning | ||||
