Horn for BMW 3 Series E46 316ti (2004)

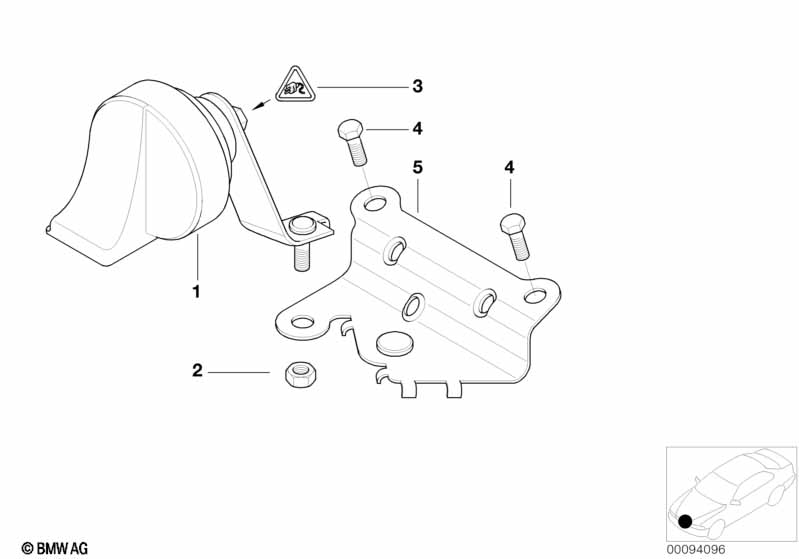

This Horn technical drawing provides a detailed breakdown of the assembly for the 3 Series E46 316ti. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2004.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Horn, low pitch | 1 | 61338379711 | $42.63 | Shop at ECS Tuning | |||||
| 01 | Horn, high pitch | 1 | 61338379712 | $42.63 | Shop at ECS Tuning | |||||
| 02 | Collar nut | M8-8-SC-ZNNIV | 1 | 07119906089 | $0.32 | Shop at ECS Tuning | ||||
| 02 | Hex nut with plate | AM6-8-ZNNIV SI | 1 | 07129905542 | $0.47 | Shop at ECS Tuning | ||||
| 03 | Rep. kit for socket housing | 2 POL. | 1 | 61132359999 | Shop at ECS Tuning | |||||
| only in conjunction with | ||||||||||
| -- | Contact bushing MQS ELA with cable | 0,5-0,75 MM² AG | X | 61130056384 | Shop at ECS Tuning | |||||
| -- | Contact bushing MQS ELA with cable | 0,35-0,5 MM² AG | X | 61130056961 | Shop at ECS Tuning | |||||
| 04 | Hex head screw with washer | ST-6,3X22 | 1 | 07119901515 | $0.30 | Shop at ECS Tuning | ||||
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 3 Series E46 316ti Horn?
- This technical diagram illustrates the Horn within the Vehicle electrical system group for the 3 Series E46 316ti produced during 2004. It provides a detailed exploded view of the components, identifying key parts such as the Horn, low pitch (Part #61338379711).
- Which models use the hardware listed in this Horn?
- The hardware and components featured in the Horn are specific to the 3 Series E46 316ti produced during 2004. These technical specifications ensure that parts like the Horn, low pitch (61338379711) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Horn assembly?
- Each item in the Horn corresponds to the numbered list below the illustration. For the 3 Series E46 316ti, you can identify the Horn, low pitch by locating its position on the schematic, which then links to the official BMW part number 61338379711 for the Vehicle electrical system section.
