Wiper arm/wiper blade for BMW 3 Series E46 320Cd (2006)

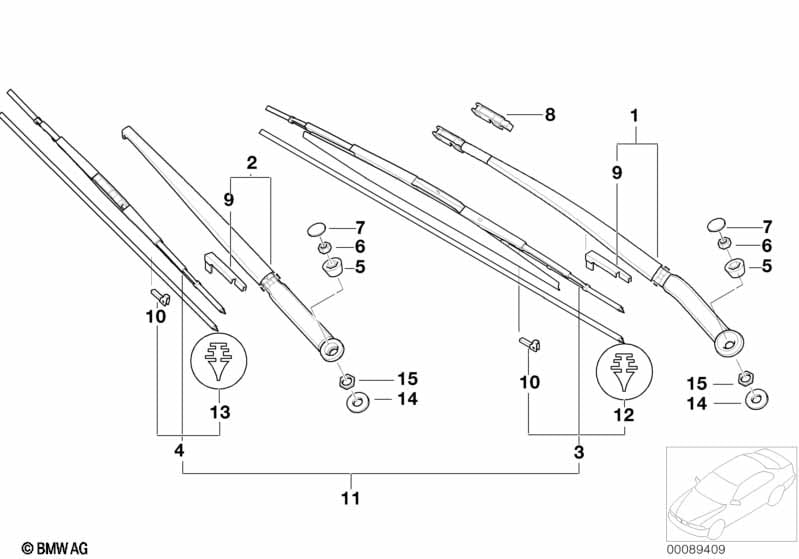

This Wiper arm/wiper blade technical drawing provides a detailed breakdown of the assembly for the 3 Series E46 320Cd. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2006.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Wiper arm, driver's side | 1 | 61617003932 | Shop at ECS Tuning | ||||||
| only in conjunction with | ||||||||||
| -- | Hex nut | 1 | 61613428077 | $0.71 | Shop at ECS Tuning | |||||
| -- | Installation element f wiper arm | 1 | 61618226059 | $2.37 | Shop at ECS Tuning | |||||
| 02 | Wiper arm, passenger's side | 1 | 61617007128 | $40.56 | Shop at ECS Tuning | |||||
| only in conjunction with | ||||||||||
| -- | Hex nut | 1 | 61613428077 | $0.71 | Shop at ECS Tuning | |||||
| -- | Installation element f wiper arm | 1 | 61618226059 | $2.37 | Shop at ECS Tuning | |||||
| 03 | Set of wiper blades "evo flat blade" | 1 | 61612458348 | Shop at ECS Tuning | ||||||
| 04 | Wiper blade co-drivers side | 1 | 61617004901 | $27.72 | ENDED | Shop at ECS Tuning | ||||
| 05 | Installation element f wiper arm | 2 | 61618226059 | $2.37 | Shop at ECS Tuning | |||||
| 06 | Hex nut | 2 | 61613428077 | $0.71 | Shop at ECS Tuning | |||||
| 07 | Wiper arm cover | 2 | 61618226006 | $0.67 | Shop at ECS Tuning | |||||
| 08 | Wiper blade clamp | 2 | 61618233577 | $2.37 | Shop at ECS Tuning | |||||
| 09 | Wiper blade guide, wiper arm | 2 | 61618263686 | $3.08 | Shop at ECS Tuning | |||||
| 10 | Wiper blade guide, wiper blade | 2 | 61618263676 | $0.75 | Shop at ECS Tuning | |||||
| 11 | Set of wiper blades "evo flat blade" | 1 | 61612458348 | Shop at ECS Tuning | ||||||
| When converting from articulated wiper blade to evo flat blade the wiper blade guide on the wiper arm (TN 8 263 685) on the driver's side wiper arm must be removed (see Diagram 61_1065, Pos. 9). |
||||||||||
| 12 | Wiper rubberdriver side | 1 | 09/1999 | 61617010247 | $9.30 | ENDED | Shop at ECS Tuning | |||
| 13 | Wiper rubberco-drivers side | 1 | 09/1999 | 61617010248 | $8.98 | ENDED | Shop at ECS Tuning | |||
| 14 | Damping washer upper part | 2 | 61613428078 | ENDED | Shop at ECS Tuning | |||||
| 15 | Hex nut | 2 | 01/2002 | 07147116137 | $1.09 | Shop at ECS Tuning | ||||
