windshield wiper system, LHD for BMW 3 Series E46 330d (2004)

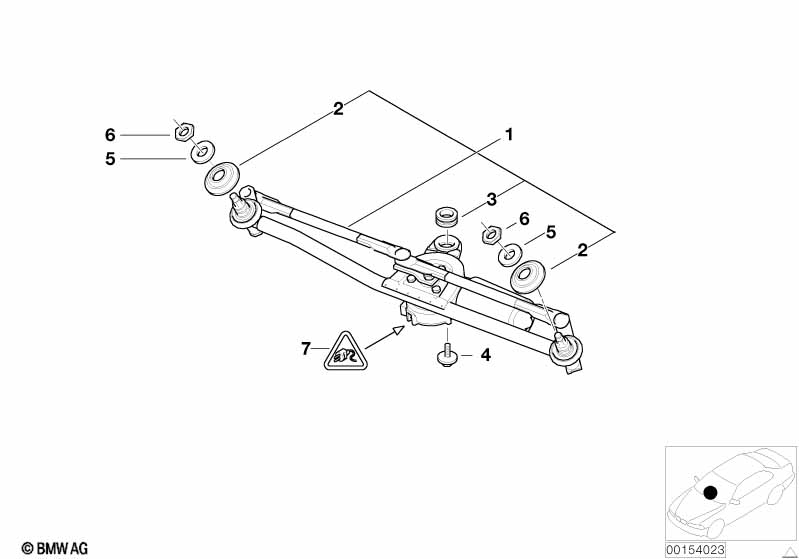

This windshield wiper system, LHD technical drawing provides a detailed breakdown of the assembly for the 3 Series E46 330d. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2004.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 06 | Hex nut | 2 | 01/2002 | 07147116137 | $1.09 | Shop at ECS Tuning | ||||
| 07 | Universal socket housing uncoded | 4 POL. | 1 | 61136984750 | $5.03 | Shop at ECS Tuning | ||||
| only in conjunction with | ||||||||||
| -- | Buchsenkontakt ELO-Power mit Kabel | 0,75-1,0 MM² SN | 4 | 61130056965 | Shop at ECS Tuning | |||||
| 07 | Rep. kit for socket housing | 4 POL. | 1 | 61132359996 | Shop at ECS Tuning | |||||
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 3 Series E46 330d windshield wiper system, LHD?
- This technical diagram illustrates the windshield wiper system, LHD within the Vehicle electrical system group for the 3 Series E46 330d produced during 2004. It provides a detailed exploded view of the components, identifying key parts such as the Hex nut (Part #07147116137).
- Which models use the hardware listed in this windshield wiper system, LHD?
- The hardware and components featured in the windshield wiper system, LHD are specific to the 3 Series E46 330d produced during 2004. These technical specifications ensure that parts like the Hex nut (07147116137) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the windshield wiper system, LHD assembly?
- Each item in the windshield wiper system, LHD corresponds to the numbered list below the illustration. For the 3 Series E46 330d, you can identify the Hex nut by locating its position on the schematic, which then links to the official BMW part number 07147116137 for the Vehicle electrical system section.
