Windshield cleaning container for BMW 3 Series E46 320i (2001)

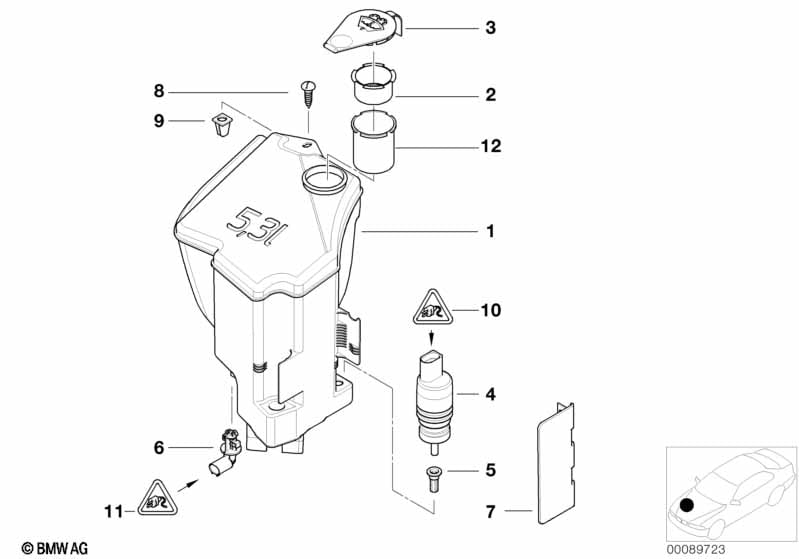

This Windshield cleaning container technical drawing provides a detailed breakdown of the assembly for the 3 Series E46 320i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2001.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Windshield cleaning container | 5L | 1 | 61667007970 | $53.53 | Shop at ECS Tuning | ||||
| 03 | Cover | 1 | 61667467951 | Shop at ECS Tuning | ||||||
| 04 | Washer pump rear | 1 | 67128362154 | $42.75 | Shop at ECS Tuning | |||||
| 05 | Strainer f wash pump | 1 | 61667006063 | $2.62 | Shop at ECS Tuning | |||||
| 06 | Level switch, coolant | 1 | 17137553919 | $17.42 | Shop at ECS Tuning | |||||
| 07 | Heat resistant plate | 1 | 61668377539 | $6.40 | Shop at ECS Tuning | |||||
| 08 | Sheet metal screw | 6,3 X 22 | 1 | 07119901587 | $0.38 | ENDED | Shop at ECS Tuning | |||
| 09 | Expanding nut | ST 6.3 | 1 | 64121379221 | $0.60 | Shop at ECS Tuning | ||||
| 10 | Universal socket housing uncoded | 2 POL. | 1 | 61138364520 | $1.52 | Shop at ECS Tuning | ||||
| only in conjunction with | ||||||||||
| -- | Double flat spring contact, MDK3 w. wire | 0,5-1,0 MM² AG | 2 | 61130070586 | Shop at ECS Tuning | |||||
| 11 | Rep. kit for socket housing | 2 POL. | 1 | 61132359999 | Shop at ECS Tuning | |||||
Notes
- ENDED = the part has been discontinued (no longer available).
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 3 Series E46 320i Windshield cleaning container?
- This technical diagram illustrates the Windshield cleaning container within the Vehicle electrical system group for the 3 Series E46 320i produced during 2001. It provides a detailed exploded view of the components, identifying key parts such as the Windshield cleaning container (Part #61667007970).
- Which models use the hardware listed in this Windshield cleaning container?
- The hardware and components featured in the Windshield cleaning container are specific to the 3 Series E46 320i produced during 2001. These technical specifications ensure that parts like the Windshield cleaning container (61667007970) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Windshield cleaning container assembly?
- Each item in the Windshield cleaning container corresponds to the numbered list below the illustration. For the 3 Series E46 320i, you can identify the Windshield cleaning container by locating its position on the schematic, which then links to the official BMW part number 61667007970 for the Vehicle electrical system section.
