battery holder and mounting parts for BMW 3 Series E46 318i (2001)

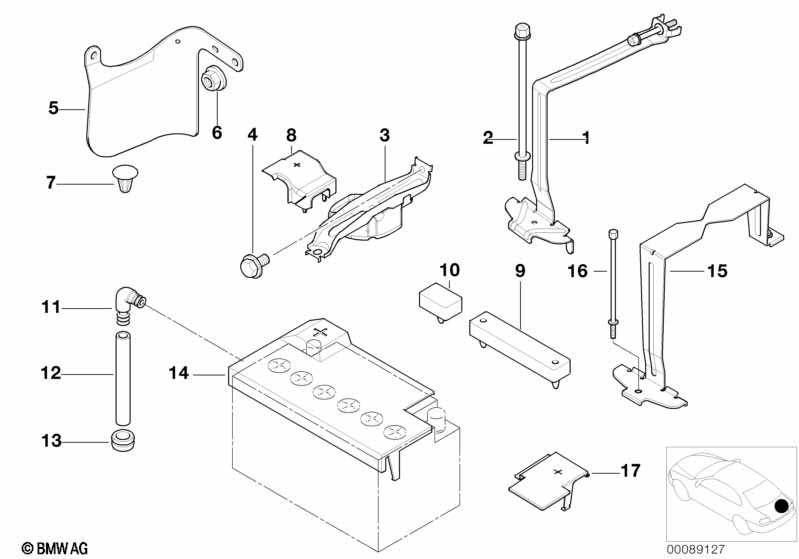

This battery holder and mounting parts technical drawing provides a detailed breakdown of the assembly for the 3 Series E46 318i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2001.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Battery hold down | 1 | 61218370982 | Shop at ECS Tuning | ||||||
| For vehicles with Battery in luggage compartment |
S832A=No |
|||||||||
| 01 | Battery hold down | 1 | 61216910130 | Shop at ECS Tuning | ||||||
| 02 | Mounting screw | 190MM | 1 | 61217577620 | $6.95 | Shop at ECS Tuning | ||||
| For vehicles with Battery in luggage compartment |
S832A=Yes |
|||||||||
| 03 | Battery hold down | 1 | 61218370984 | $10.22 | Shop at ECS Tuning | |||||
| 04 | Hex bolt with washer | M8X16 | 2 | 07119905528 | $0.62 | Shop at ECS Tuning | ||||
| 05 | Impact protection | 1 | 61218372437 | $4.92 | Shop at ECS Tuning | |||||
| 06 | Hex nut with plate | M6 ZNT | 1 | 07149156628 | $0.25 | Shop at ECS Tuning | ||||
| 07 | Clip | H=15MM | 1 | 51481924909 | $0.42 | Shop at ECS Tuning | ||||
| 08 | Cover positive battery terminal | 1 | 61218375653 | $3.12 | Shop at ECS Tuning | |||||
| 09 | Spacer | 1 | 61218375655 | $1.00 | Shop at ECS Tuning | |||||
| 10 | Spacer | 1 | 61211350825 | $1.20 | Shop at ECS Tuning | |||||
| 11 | Connection elbow | 1 | 61211377835 | $0.52 | Shop at ECS Tuning | |||||
| 12 | Hose running meter | X | 61211377745 | $1.97 | Shop at ECS Tuning | |||||
| 13 | Grommet | 10,5MM | 1 | 61218050550 | $0.35 | Shop at ECS Tuning | ||||
| 14 | Battery protective cover | 70 AH | 1 | 61218370981 | $4.47 | Shop at ECS Tuning | ||||
| 14 | Battery protective cover | 55 AH | 1 | 61218381015 | Shop at ECS Tuning | |||||
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 3 Series E46 318i battery holder and mounting parts?
- This technical diagram illustrates the battery holder and mounting parts within the Vehicle electrical system group for the 3 Series E46 318i produced during 2001. It provides a detailed exploded view of the components, identifying key parts such as the Battery hold down (Part #61218370982).
- Which models use the hardware listed in this battery holder and mounting parts?
- The hardware and components featured in the battery holder and mounting parts are specific to the 3 Series E46 318i produced during 2001. These technical specifications ensure that parts like the Battery hold down (61218370982) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the battery holder and mounting parts assembly?
- Each item in the battery holder and mounting parts corresponds to the numbered list below the illustration. For the 3 Series E46 318i, you can identify the Battery hold down by locating its position on the schematic, which then links to the official BMW part number 61218370982 for the Vehicle electrical system section.
