Battery cable(battery rear) for BMW 3 Series E46 318i (2001)

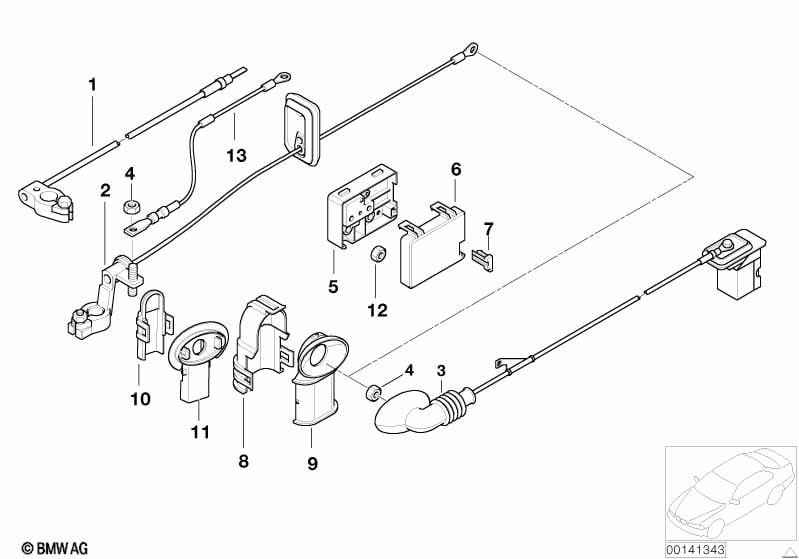

This Battery cable(battery rear) technical drawing provides a detailed breakdown of the assembly for the 3 Series E46 318i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2001.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| For vehicles with Battery in luggage compartment |
S832A=Yes |
|||||||||
| 01 | Battery cable negative | 1 | 61128373946 | $22.75 | Shop at ECS Tuning | |||||
| 02 | Battery cable (plus pole) | 1 | 61128373945 | $163.44 | Shop at ECS Tuning | |||||
| 03 | Battery cable (plus pole) | 1 | 09/1999 | 61136910539 | $46.35 | Shop at ECS Tuning | ||||
| 04 | Hex nut | M8 | 1 | 07149125856 | $1.33 | Shop at ECS Tuning | ||||
| 05 | Base B+ | 2X | 1 | 09/2000 | 61138387546 | $36.40 | Shop at ECS Tuning | |||
| 07 | Lead seal for Service (red) | 1 | 61138378461 | $0.55 | ENDED | Shop at ECS Tuning | ||||
| 08 | Cover base B+ | 1 | 61138371017 | $0.77 | Shop at ECS Tuning | |||||
| 09 | Covering base B+ | 1 | 61138371016 | $0.80 | Shop at ECS Tuning | |||||
| 12 | Self-locking hex nut | M5 | 1 | 07147575164 | $0.46 | Shop at ECS Tuning | ||||
| 13 | Connection cable B+ | 1 | 61126957941 | $37.92 | Shop at ECS Tuning | |||||
Notes
- ENDED = the part has been discontinued (no longer available).
