Fuse box for BMW 1502-2002tii 2002 (1975)

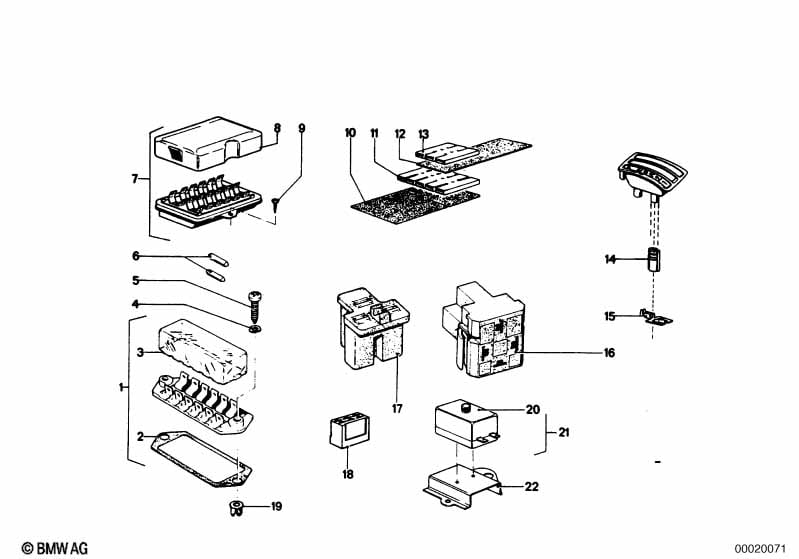

This Fuse box technical drawing provides a detailed breakdown of the assembly for the 1502-2002tii 2002. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1975.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 06 | Fuse | 8A | X | 61138760138 | $1.83 | Shop at ECS Tuning | ||||
| 06 | Fuse | 25A | X | 61138760139 | $1.83 | ENDED | Shop at ECS Tuning | |||
| 06 | Fuse | 16A | X | 61138760140 | $1.83 | Shop at ECS Tuning | ||||
| 06 | Fuse | 5A | X | 61138760141 | $0.14 | Shop at ECS Tuning | ||||
| 07 | Fuse box | 1 | 08/1973 | 07/1977 | 61131357062 | $142.85 | ENDED | Shop at ECS Tuning | ||
| 08 | Cover | 1 | 03/1971 | 07/1977 | 61131352400 | $14.74 | Shop at ECS Tuning | |||
| 09 | Screw | 1 | 03/1971 | 07/1977 | 07119904170 | $0.17 | Shop at ECS Tuning | |||
| 11 | Plug housing | 1 | 61139017729 | ENDED | Shop at ECS Tuning | |||||
| 12 | Plate | 1 | 61139557323 | ENDED | Shop at ECS Tuning | |||||
| 13 | Connection piece | 1 | 61138666125 | ENDED | Shop at ECS Tuning | |||||
| 16 | Receptacle housing | 2 | 03/1971 | 07/1977 | 61131350616 | ENDED | Shop at ECS Tuning | |||
| 17 | Housing | 1 | 03/1971 | 07/1977 | 12328608018 | $3.00 | +core | Shop at ECS Tuning | ||
| 18 | Plug terminal for tail light | 2 | 08/1973 | 07/1977 | 61131361247 | $1.41 | ENDED | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
- +core = plus core charge (possibility of a return of the old part)
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 1502-2002tii 2002 Fuse box?
- This technical diagram illustrates the Fuse box within the Vehicle electrical system group for the 1502-2002tii 2002 produced during 1975. It provides a detailed exploded view of the components, identifying key parts such as the Fuse (Part #61138760138).
- Which models use the hardware listed in this Fuse box?
- The hardware and components featured in the Fuse box are specific to the 1502-2002tii 2002 produced during 1975. These technical specifications ensure that parts like the Fuse (61138760138) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Fuse box assembly?
- Each item in the Fuse box corresponds to the numbered list below the illustration. For the 1502-2002tii 2002, you can identify the Fuse by locating its position on the schematic, which then links to the official BMW part number 61138760138 for the Vehicle electrical system section.
