Various plug terminals/cable grommet for BMW 1502-2002tii 1602 (1975)

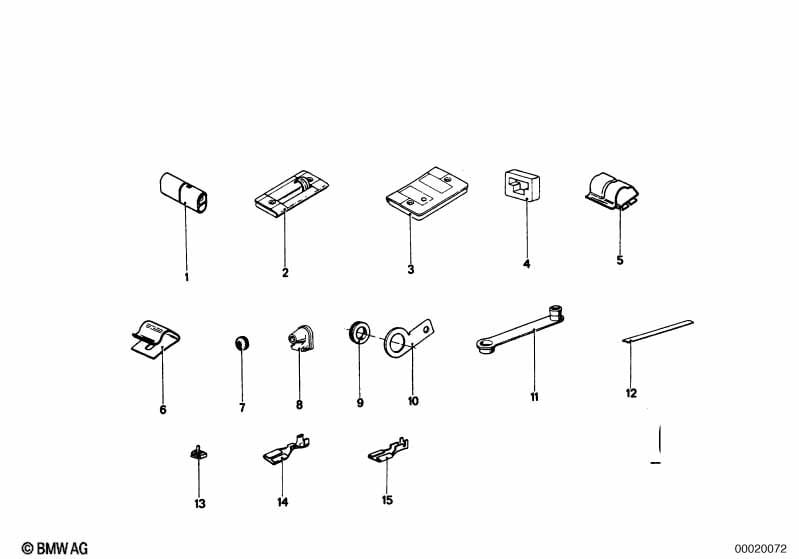

This Various plug terminals/cable grommet technical drawing provides a detailed breakdown of the assembly for the 1502-2002tii 1602. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1975.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Fuse housing | 1 | 61131350444 | ENDED | Shop at ECS Tuning | |||||
| 05 | Clamp | 1 | 07147202015 | Shop at ECS Tuning | ||||||
| 06 | Cable clamp | D=4,5MM | X | 61131353865 | $0.42 | Shop at ECS Tuning | ||||
| 06 | Cable clamp | D=12MM | X | 61131355345 | $0.82 | ENDED | Shop at ECS Tuning | |||
| 06 | Clamp | X | 61131359345 | ENDED | Shop at ECS Tuning | |||||
| 07 | Cable grommet | 2 | 61131350914 | $1.15 | Shop at ECS Tuning | |||||
| 08 | Cable grommet | 2 | 61131353319 | ENDED | Shop at ECS Tuning | |||||
| 11 | Cable holder | 70MM | X | 61131353661 | $1.37 | ENDED | Shop at ECS Tuning | |||
| 11 | Cable holder | 53MM | X | 61131353663 | $1.97 | ENDED | Shop at ECS Tuning | |||
| 12 | Cable tie | 1 | 61131352477 | $2.19 | ENDED | Shop at ECS Tuning | ||||
| 12 | Cable tie | L=292MM/B=4,8MM | X | 61131377134 | $0.77 | Shop at ECS Tuning | ||||
| 13 | Lock | 1 | 61131352478 | $0.40 | ENDED | Shop at ECS Tuning | ||||
| 14 | Cable socket female | B=8/L=20 | X | 61138608021 | $0.55 | ENDED | Shop at ECS Tuning | |||
| 15 | Cable socket female | X | 61131352237 | ENDED | Shop at ECS Tuning |
