Wiper for BMW 1502-2002tii 2002 (1970)

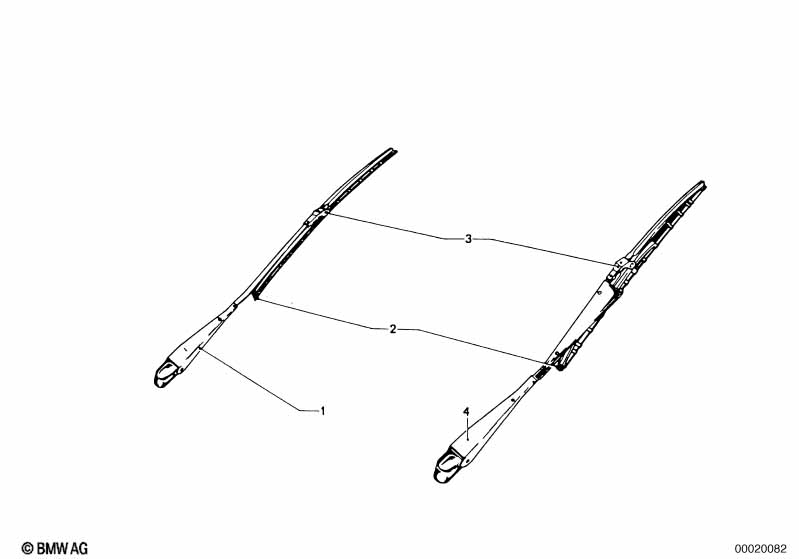

This Wiper technical drawing provides a detailed breakdown of the assembly for the 1502-2002tii 2002. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1970.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Wiper arm with air baffle plate left | CHROM | 1 | 03/1966 | 04/1972 | 61618644143 | $141.73 | ENDED | Shop at ECS Tuning | |
| 02 | Wiper rubber | 15" | 2 | 61611352734 | $19.63 | Shop at ECS Tuning | ||||
| 02 | Wiper rubber | TRICO | 2 | 61611359201 | ENDED | Shop at ECS Tuning | ||||
| 04 | Wiper arm | CHROM | 1 | 03/1966 | 04/1972 | 61618644142 | ENDED | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 1502-2002tii 2002 Wiper?
- This technical diagram illustrates the Wiper within the Vehicle electrical system group for the 1502-2002tii 2002 produced during 1970. It provides a detailed exploded view of the components, identifying key parts such as the Wiper arm with air baffle plate left (Part #61618644143).
- Which models use the hardware listed in this Wiper?
- The hardware and components featured in the Wiper are specific to the 1502-2002tii 2002 produced during 1970. These technical specifications ensure that parts like the Wiper arm with air baffle plate left (61618644143) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Wiper assembly?
- Each item in the Wiper corresponds to the numbered list below the illustration. For the 1502-2002tii 2002, you can identify the Wiper arm with air baffle plate left by locating its position on the schematic, which then links to the official BMW part number 61618644143 for the Vehicle electrical system section.
