Windshield cleaning for BMW 1502-2002tii 1602 (1975)

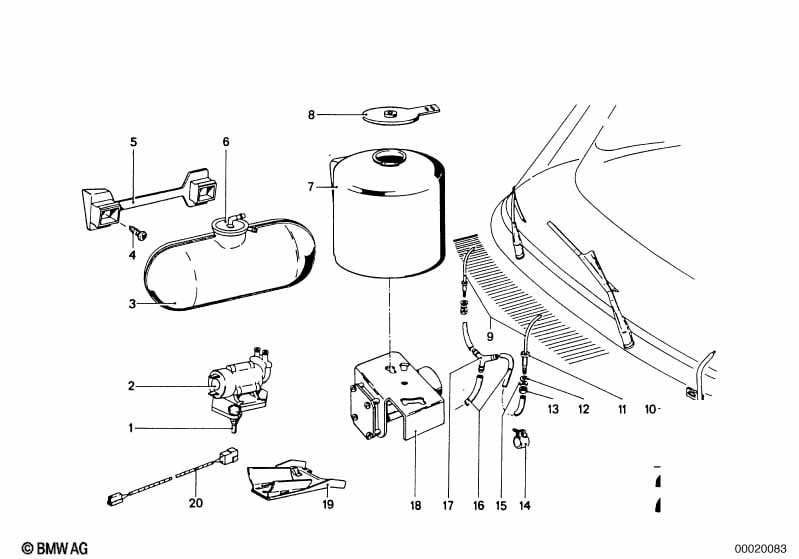

This Windshield cleaning technical drawing provides a detailed breakdown of the assembly for the 1502-2002tii 1602. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1975.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 07 | Fluid container | 1 | 61661350871 | $40.71 | Shop at ECS Tuning | |||||
| 08 | Cover | 1 | 61668645126 | ENDED | Shop at ECS Tuning | |||||
| 08 | Cover f windshield cleaning container | 1 | 61661364807 | $5.90 | Shop at ECS Tuning | |||||
| 09 | Spray nozzle | 2 | 61668445110 | $18.59 | Shop at ECS Tuning | |||||
| 11 | Washer | 2 | 61668445111 | ENDED | Shop at ECS Tuning | |||||
| 12 | Washer | 8-200-ZNS3 | 2 | 07119904826 | $0.40 | Shop at ECS Tuning | ||||
| 13 | Hex nut | M8-05-ZNNIV SI | 2 | 07119904948 | $1.00 | Shop at ECS Tuning | ||||
| 14 | Hose clamp | 8-9.5MM | 6 | 16131379229 | $0.72 | Shop at ECS Tuning | ||||
| 14 | Hose clamp | 8-9.5MM | 6 | 16131379229 | $0.72 | Shop at ECS Tuning | ||||
| 15 | Wave washer | 8,4X15-ZNS3 | 2 | 07119904115 | $0.09 | Shop at ECS Tuning | ||||
| 16 | Hose line | D= 4,6MM | X | 61661357388 | $5.05 | Shop at ECS Tuning | ||||
| 17 | Distribution piece | 1 | 61661355939 | $1.18 | Shop at ECS Tuning | |||||
| 18 | Wash pump | 1 | 61661358328 | $114.13 | ENDED | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
