Battery cable/earth cable for BMW 1500-2000CS 1800 (1971)

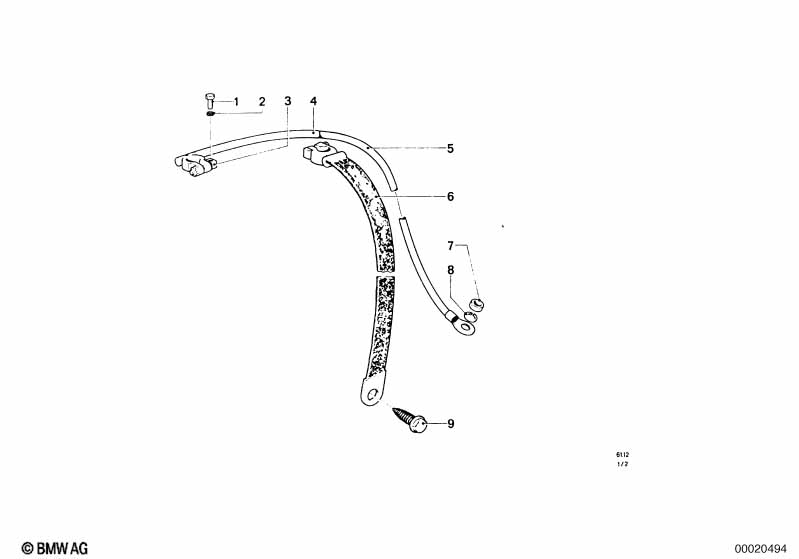

This Battery cable/earth cable technical drawing provides a detailed breakdown of the assembly for the 1500-2000CS 1800. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1971.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Hex bolt | M6X10-8.8-ZNS3 | 1 | 07119904633 | $0.20 | Shop at ECS Tuning | ||||
| 02 | Set tooth washer 25 | A6,4 | 1 | 07509064287 | ENDED | Shop at ECS Tuning | ||||

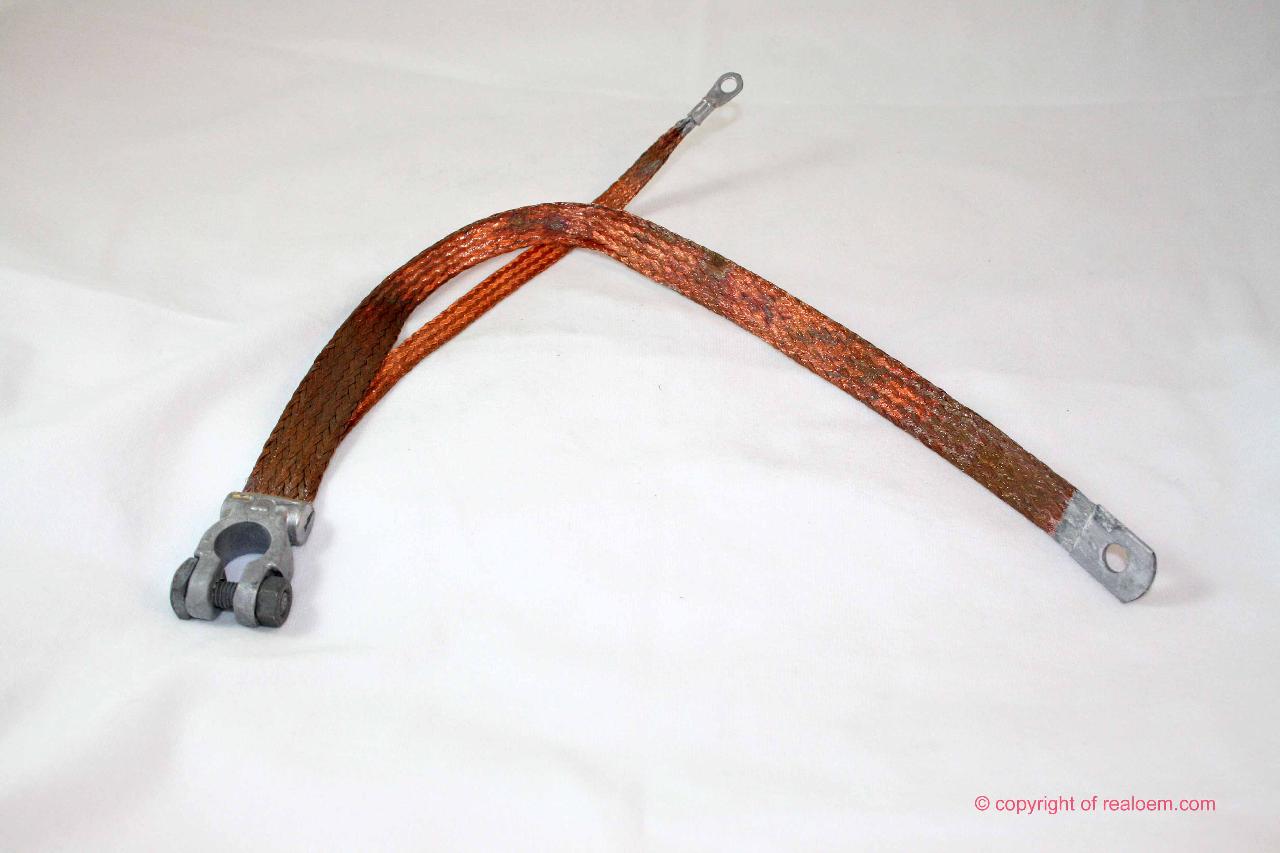

| 05 | Battery cable negative | 1 | 61121350305 | $52.68 | Shop at ECS Tuning | |||||
| 06 | Battery cable (plus pole) | L=700MM | 1 | 12421277518 | $38.62 | ENDED | Shop at ECS Tuning | |||
| 07 | Hex nut | M8-8-ZNS3 | 1 | 01/1972 | 07119904032 | $0.16 | Shop at ECS Tuning | |||
| 07 | Hex nut | M8-8-ZNNIV SI | 1 | 07119905515 | $0.16 | Shop at ECS Tuning | ||||
| 08 | Spring washer | B8 | 1 | 07119933096 | $0.18 | Shop at ECS Tuning | ||||
| 09 | Sheet metal screw | B6,5X16 | 1 | 12138530118 | $0.40 | ENDED | Shop at ECS Tuning |
