Fuse box for BMW 1500-2000CS 2000 (1968)

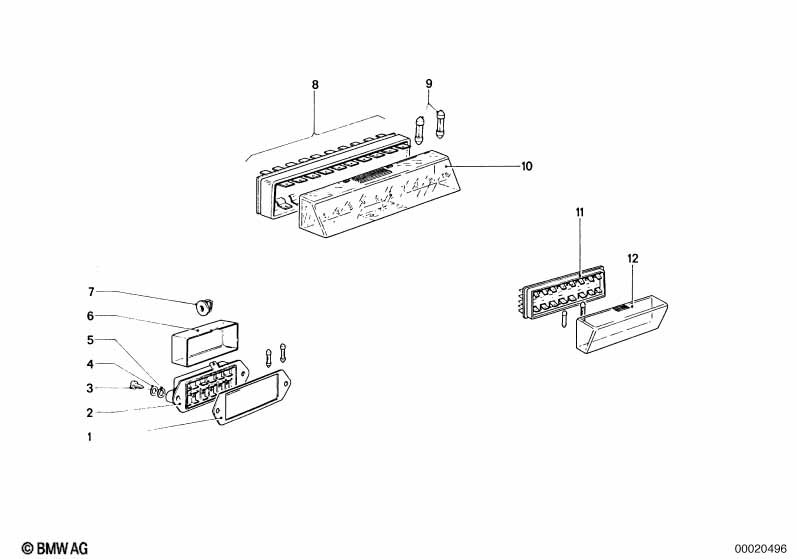

This Fuse box technical drawing provides a detailed breakdown of the assembly for the 1500-2000CS 2000. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1968.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Base | 1 | 02/1962 | 12/1968 | 61138660140 | ENDED | Shop at ECS Tuning | |||
| 02 | Fuse box | 1 | 02/1962 | 12/1968 | 61138760130 | ENDED | Shop at ECS Tuning | |||
| 03 | Sheet metal screw with washer | ST4,8X25 Z2 SW | 2 | 02/1962 | 12/1968 | 07119907750 | $0.27 | Shop at ECS Tuning | ||
| 04 | Wave washer | B5 | 2 | 02/1962 | 12/1968 | 07119932098 | $0.38 | Shop at ECS Tuning | ||
| 05 | Washer | 10X5,3X1-200 HV | 2 | 02/1962 | 12/1968 | 07119904206 | Shop at ECS Tuning | |||
| 05 | Washer | 5.3-140 HV-ZNS | 2 | 02/1962 | 12/1968 | 07119936439 | $0.40 | Shop at ECS Tuning | ||
| 06 | Cover | 1 | 02/1962 | 12/1968 | 61138660132 | ENDED | Shop at ECS Tuning | |||
| 07 | Nut | 2 | 02/1962 | 12/1968 | 51216654134 | ENDED | Shop at ECS Tuning | |||
| 08 | Fuse box | 1 | 07/1968 | 01/1972 | 61131350811 | $119.41 | ENDED | Shop at ECS Tuning | ||
| 08 | Fuse box | 1 | 07/1968 | 01/1972 | 61131354054 | ENDED | Shop at ECS Tuning | |||
| 10 | Cover | 1 | 07/1968 | 01/1972 | 61131350837 | ENDED | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 1500-2000CS 2000 Fuse box?
- This technical diagram illustrates the Fuse box within the Vehicle electrical system group for the 1500-2000CS 2000 produced during 1968. It provides a detailed exploded view of the components, identifying key parts such as the Base (Part #61138660140).
- Which models use the hardware listed in this Fuse box?
- The hardware and components featured in the Fuse box are specific to the 1500-2000CS 2000 produced during 1968. These technical specifications ensure that parts like the Base (61138660140) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Fuse box assembly?
- Each item in the Fuse box corresponds to the numbered list below the illustration. For the 1500-2000CS 2000, you can identify the Base by locating its position on the schematic, which then links to the official BMW part number 61138660140 for the Vehicle electrical system section.
