Fuse box for BMW 1500-2000CS 2000tii (1971)

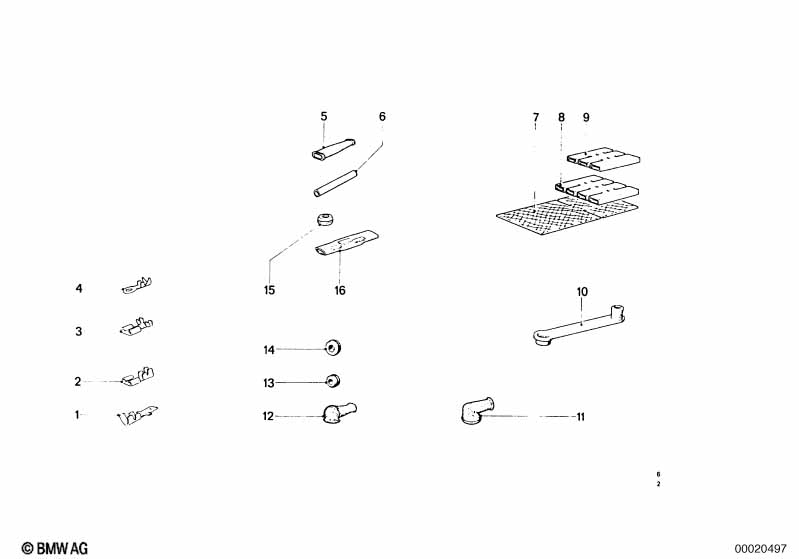

This Fuse box technical drawing provides a detailed breakdown of the assembly for the 1500-2000CS 2000tii. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1971.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Flat-type connector | B=6.5/L=19.2 | X | 61131376755 | $0.21 | ENDED | Shop at ECS Tuning | |||
| 02 | Cable socket female | B=6,5/L=19,5 | X | 61131376460 | $0.48 | Shop at ECS Tuning | ||||
| 02 | Cable socket female | B=7,5/L=19,2MM | X | 61138061769 | $0.48 | ENDED | Shop at ECS Tuning | |||
| 03 | Sleeve | X | 61138061779 | ENDED | Shop at ECS Tuning | |||||
| 04 | Cable terminal | A4-2,5 | X | 07119975911 | ENDED | Shop at ECS Tuning | ||||
| 05 | Insulation sleeve | X | 61131352601 | $0.84 | Shop at ECS Tuning | |||||
| 05 | Insulation sleeve | X | 61131352603 | ENDED | Shop at ECS Tuning | |||||
| 05 | Insulation sleeve | X | 61131362373 | Shop at ECS Tuning | ||||||
| 06 | Grommet | X | 61138070188 | $0.42 | Shop at ECS Tuning | |||||
| 06 | Grommet | X | 61138070220 | $0.42 | ENDED | Shop at ECS Tuning | ||||
| 08 | Plug housing | 2 | 61139017729 | ENDED | Shop at ECS Tuning | |||||
| 09 | Connection piece | 1 | 61138666125 | ENDED | Shop at ECS Tuning | |||||
| 10 | Cable holder | 70MM | X | 61131353661 | $1.37 | ENDED | Shop at ECS Tuning | |||
| 12 | Cap | 3 | 62128570124 | ENDED | Shop at ECS Tuning | |||||
| 13 | Grommet | 10,5MM | 1 | 61218050550 | $0.35 | Shop at ECS Tuning | ||||
| 14 | Rubber grommet | 1 | 16114066530 | $1.70 | Shop at ECS Tuning | |||||
| 15 | Cable grommet | 2 | 07/1968 | 01/1972 | 61131350914 | $1.15 | Shop at ECS Tuning | |||
| 16 | Cable clamp | X | 61138061766 | $0.84 | ENDED | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
