Windshield cleaning for BMW 1500-2000CS 1800ti (1966)

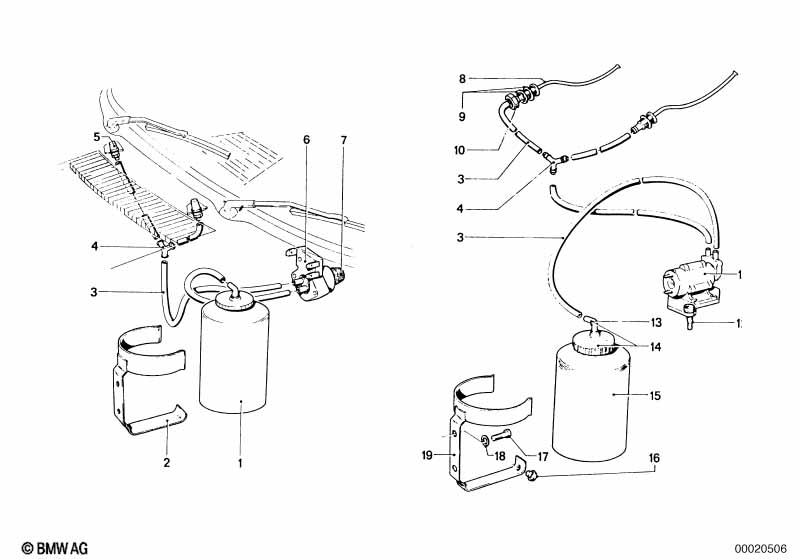

This Windshield cleaning technical drawing provides a detailed breakdown of the assembly for the 1500-2000CS 1800ti. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1966.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 04 | Distribution piece | 1 | 61661350885 | $1.10 | Shop at ECS Tuning | |||||
| 08 | Spray nozzle | 2 | 02/1962 | 12/1968 | 61708645122 | ENDED | Shop at ECS Tuning | |||
| 09 | Washer | 8-200-ZNS3 | 4 | 07119904826 | $0.40 | Shop at ECS Tuning | ||||
| 10 | Hex nut | M8-05-ZNNIV SI | 2 | 07119904948 | $1.00 | Shop at ECS Tuning | ||||
| 11 | Wash pump | 1 | 02/1962 | 12/1968 | 61708445020 | ENDED | Shop at ECS Tuning | |||
| 12 | Grommet | 2 | 61708645127 | ENDED | Shop at ECS Tuning | |||||
| 13 | Support | 1 | 61708645125 | ENDED | Shop at ECS Tuning | |||||
| 14 | Cover | 1 | 61708645123 | $3.87 | ENDED | Shop at ECS Tuning | ||||
| 15 | Fluid container | 1 | 61708645116 | ENDED | Shop at ECS Tuning | |||||
| 17 | Hex bolt | M5X12-8.8 ZN | 2 | 07119913231 | $1.42 | Shop at ECS Tuning | ||||
| 18 | Wave washer | B5 | 2 | 07119932098 | $0.38 | Shop at ECS Tuning | ||||
| 19 | Holder | 1 | 61708645131 | ENDED | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
