Switch for BMW 2.5CS-3.0CSL 3.0CSL (1973)

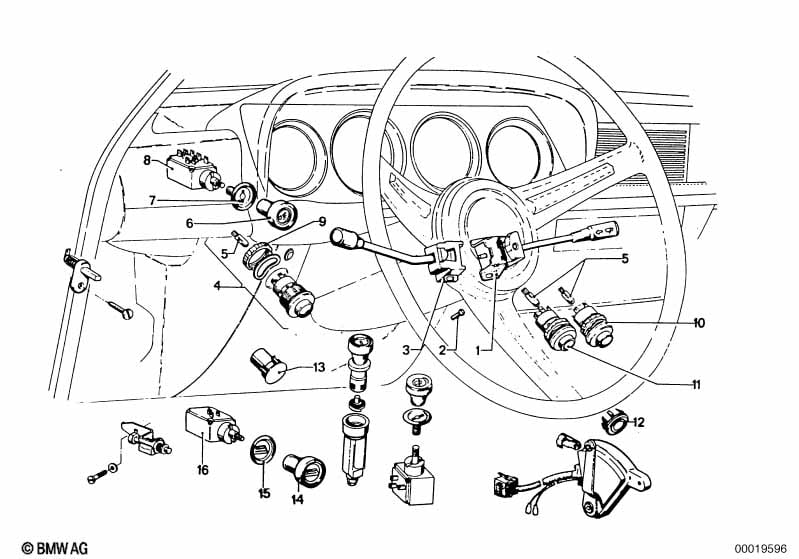

This Switch technical drawing provides a detailed breakdown of the assembly for the 2.5CS-3.0CSL 3.0CSL. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1973.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Turn indicator switch | 1 | 12/1968 | 10/1973 | 61311351852 | $637.52 | ENDED | Shop at ECS Tuning | ||
| 02 | Fillister head screw | M5X8-Z3 | 4 | 07119906822 | $0.18 | Shop at ECS Tuning | ||||
| 03 | Dip control switch | 1 | 12/1968 | 10/1973 | 61311351854 | $263.03 | ENDED | Shop at ECS Tuning | ||
| For vehicles with National version france or National version italy |
L813A=Yes L814A=Yes |
|||||||||
| 03 | Switch | 1 | 09/1972 | 11/1975 | 61311363656 | ENDED | Shop at ECS Tuning | |||
| 04 | Fog lamp switch | 1 | 12/1968 | 11/1975 | 61311353589 | ENDED | Shop at ECS Tuning | |||
| For vehicles with National version france and National version sweden |
L813A=Yes =Yes |
|||||||||
| 04 | Fog lamp switch | 1 | 04/1971 | 11/1975 | 61311356873 | ENDED | Shop at ECS Tuning | |||
| 05 | Bulb | 1,2W | 3 | 12/1968 | 11/1975 | 62149557328 | $2.68 | ENDED | Shop at ECS Tuning | |
| 06 | Button | 1 | 61311810772 | ENDED | Shop at ECS Tuning | |||||
| 07 | Trim ring | 2 | 61311351051 | ENDED | Shop at ECS Tuning | |||||
| 08 | Light switch | 1 | 61311355791 | $145.50 | Shop at ECS Tuning | |||||
| 08 | Light switch | 1 | 12/1968 | 11/1975 | 61311350151 | $220.97 | ENDED | Shop at ECS Tuning | ||
| 09 | Nut | 1 | 61319557305 | $2.34 | ENDED | Shop at ECS Tuning | ||||
| 10 | Hazard warning switch | 1 | 12/1968 | 11/1975 | 61311353428 | $45.95 | Shop at ECS Tuning | |||
| 11 | Switch heated rear window | 1 | 12/1968 | 11/1975 | 61311353590 | $86.37 | Shop at ECS Tuning | |||
| 12 | Cover | 1 | 04/1971 | 11/1975 | 61311353364 | $30.69 | ENDED | Shop at ECS Tuning | ||
| 13 | Plug | 1 | 09/1972 | 11/1975 | 61311352646 | $1.90 | ENDED | Shop at ECS Tuning | ||
| 14 | Button | 1 | 04/1971 | 11/1975 | 61311355620 | ENDED | Shop at ECS Tuning | |||
Notes
- ENDED = the part has been discontinued (no longer available).
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 2.5CS-3.0CSL 3.0CSL Switch?
- This technical diagram illustrates the Switch within the Vehicle electrical system group for the 2.5CS-3.0CSL 3.0CSL produced during 1973. It provides a detailed exploded view of the components, identifying key parts such as the Turn indicator switch (Part #61311351852).
- Which models use the hardware listed in this Switch?
- The hardware and components featured in the Switch are specific to the 2.5CS-3.0CSL 3.0CSL produced during 1973. These technical specifications ensure that parts like the Turn indicator switch (61311351852) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Switch assembly?
- Each item in the Switch corresponds to the numbered list below the illustration. For the 2.5CS-3.0CSL 3.0CSL, you can identify the Turn indicator switch by locating its position on the schematic, which then links to the official BMW part number 61311351852 for the Vehicle electrical system section.
