Windshield cleaning for BMW 2.5CS-3.0CSL 3.0CS

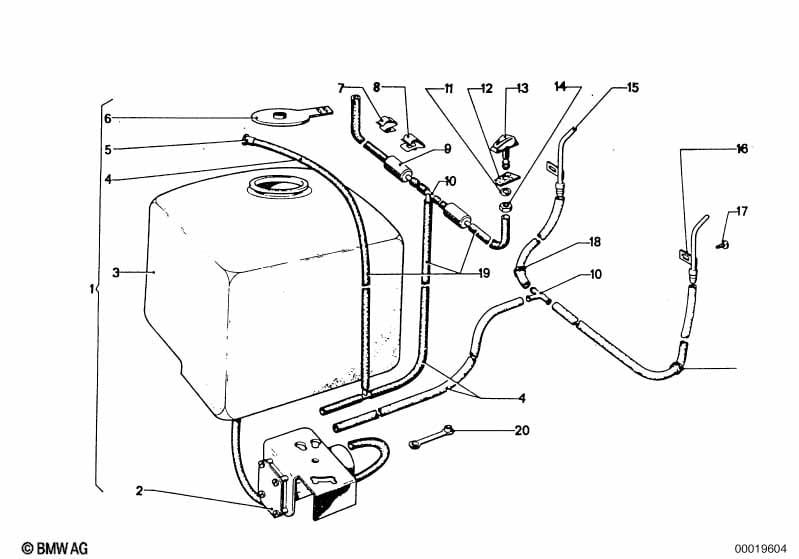

This Windshield cleaning technical drawing provides a detailed breakdown of the assembly for the 2.5CS-3.0CSL 3.0CS. It includes part names, part numbers and all associated mounting hardware.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 02 | Wash pump | 1 | 04/1971 | 11/1975 | 61671359116 | $152.41 | Shop at ECS Tuning | |||
| 03 | Fluid container | 1 | 12/1968 | 11/1975 | 61661350871 | $40.71 | Shop at ECS Tuning | |||
| 03 | Fluid container | 1 | 04/1971 | 11/1975 | 61661356190 | $92.87 | Shop at ECS Tuning | |||
| 04 | Hose line | D= 4,6MM | X | 61661357388 | $5.05 | Shop at ECS Tuning | ||||
| 05 | Jet | 1 | 12/1968 | 11/1975 | 61661355072 | ENDED | Shop at ECS Tuning | |||
| 06 | Cover f windshield cleaning container | 1 | 61661364807 | $5.90 | Shop at ECS Tuning | |||||
| 07 | Clamp | 1 | 07147202015 | Shop at ECS Tuning | ||||||
| 07 | Cable clamp | D=9/B=4 | 1 | 61131351045 | $0.42 | Shop at ECS Tuning | ||||
| 08 | Cable clamp | D=7MM | 4 | 61131353804 | $0.42 | ENDED | Shop at ECS Tuning | |||
| 08 | Cable clamp | 2 | 12/1968 | 11/1975 | 61131351136 | ENDED | Shop at ECS Tuning | |||
| 09 | Valve | 2 | 04/1971 | 11/1975 | 61661355299 | $18.57 | Shop at ECS Tuning | |||
| 10 | Distribution piece | 2 | 61661355939 | $1.18 | Shop at ECS Tuning | |||||
| 11 | Washer | 8,4X16X1,6-ZNNV | 2 | 07119907030 | Shop at ECS Tuning | |||||
| 12 | Washer | 2 | 61661354194 | $0.68 | Shop at ECS Tuning | |||||
| 13 | Spray nozzle | 2 | 04/1971 | 11/1975 | 61661354822 | $6.34 | Shop at ECS Tuning | |||
| 14 | Hex nut | M8-8-ZNS3 | 2 | 11/1975 | 07119904032 | $0.16 | Shop at ECS Tuning | |||
| 14 | Hex nut | M8-8-ZNNIV SI | 2 | 07119905515 | $0.16 | Shop at ECS Tuning | ||||
| 15 | Spray nozzle | 2 | 12/1968 | 10/1973 | 61711810760 | ENDED | Shop at ECS Tuning | |||
| 19 | Hose line | 1 | 12/1968 | 11/1975 | 61711355032 | ENDED | Shop at ECS Tuning |
