Headlight cleaning system for BMW 2.5CS-3.0CSL 3.0CSi

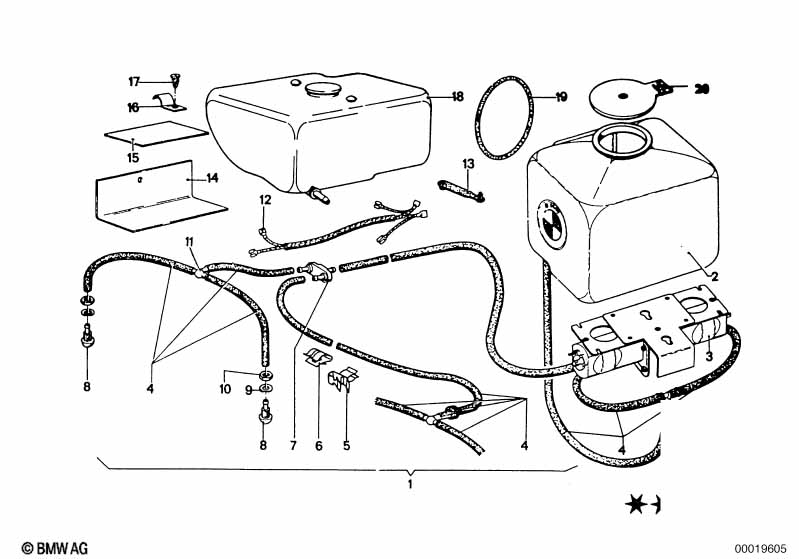

This Headlight cleaning system technical drawing provides a detailed breakdown of the assembly for the 2.5CS-3.0CSL 3.0CSi. It includes part names, part numbers and all associated mounting hardware.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Retrofit kit, headlight cleaning system | 1 | 61601356132 | ENDED | Shop at ECS Tuning | |||||
| 02 | Fluid container | 1 | 61661359047 | ENDED | Shop at ECS Tuning | |||||
| 03 | Wash pump | 1 | 61671359116 | $152.41 | Shop at ECS Tuning | |||||
| 03 | Twin wash pump | 1 | 61671359118 | $175.21 | ENDED | Shop at ECS Tuning | ||||
| 04 | Hose line | D= 4,6MM | X | 61661357388 | $5.05 | Shop at ECS Tuning | ||||
| 05 | Cable clamp | 1 | 61138660184 | $0.45 | ENDED | Shop at ECS Tuning | ||||
| 06 | Pipe clip | 1 | 18307565082 | $0.38 | Shop at ECS Tuning | |||||
| 07 | Valve | 2 | 61661355299 | $18.57 | Shop at ECS Tuning | |||||
| 08 | Spray nozzle | 2 | 61671355029 | $8.07 | ENDED | Shop at ECS Tuning | ||||
| 08 | Jet | 4 | 12/1968 | 11/1975 | 61671355871 | ENDED | Shop at ECS Tuning | |||
| 11 | Distribution piece | 4 | 61661355939 | $1.18 | Shop at ECS Tuning | |||||
| 12 | Wiring set | 1 | 61121352837 | ENDED | Shop at ECS Tuning | |||||
| 13 | Cable holder | 70MM | 2 | 61131353661 | $1.37 | ENDED | Shop at ECS Tuning | |||
| 14 | Protection plate | 1 | 61671358254 | ENDED | Shop at ECS Tuning | |||||
| 15 | Base | 1 | 04/1971 | 11/1975 | 61631358421 | ENDED | Shop at ECS Tuning | |||
| 16 | Clamp | 1X12 | 2 | 04/1971 | 11/1975 | 07119977235 | $2.12 | ENDED | Shop at ECS Tuning | |
| 17 | Set fillister head self-tapping screw 20 | ST4,2X13-Z2 | 2 | 04/1971 | 11/1975 | 07509064386 | ENDED | Shop at ECS Tuning | ||
| 18 | Fluid container | 1 | 04/1971 | 11/1975 | 61671357833 | ENDED | Shop at ECS Tuning | |||
| 19 | O-ring | 100X4 | 1 | 04/1971 | 11/1975 | 07119905680 | Shop at ECS Tuning | |||
| 20 | Cover f windshield cleaning container | 1 | 61661364807 | $5.90 | Shop at ECS Tuning |
