Diagnostic adapter for BMW 2500-3.3Li 2800 (1975)

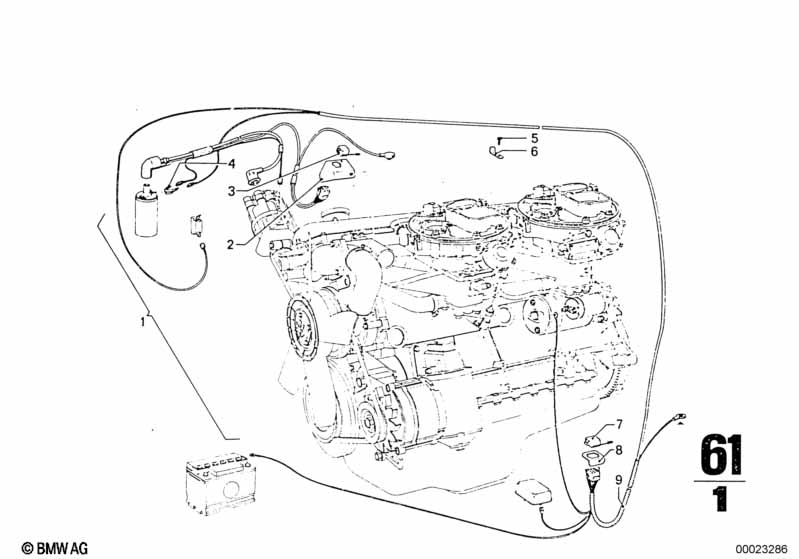

This Diagnostic adapter technical drawing provides a detailed breakdown of the assembly for the 2500-3.3Li 2800. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1975.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Wiring set | 1 | 08/1968 | 02/1977 | 61001354075 | ENDED | Shop at ECS Tuning | |||
| 02 | Holder | 1 | 12121353285 | ENDED | Shop at ECS Tuning | |||||
| 03 | Cover lid | 1 | 12121353222 | ENDED | Shop at ECS Tuning | |||||
| 04 | Twin plug | B=6,4 | 1 | 61138061771 | $0.33 | ENDED | Shop at ECS Tuning | |||
| 05 | Screw | 2 | 07119904170 | $0.17 | Shop at ECS Tuning | |||||
| 06 | Diagnosis plug bracket | 1 | 12121353322 | ENDED | Shop at ECS Tuning | |||||
| 07 | Cover lid | 1 | 61131353187 | ENDED | Shop at ECS Tuning | |||||
| 08 | Support | 1 | 41141809421 | ENDED | Shop at ECS Tuning | |||||
| 09 | Wiring set | 1 | 61121354052 | ENDED | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
