Cable harness for BMW 2500-3.3Li 3.0S (1977)

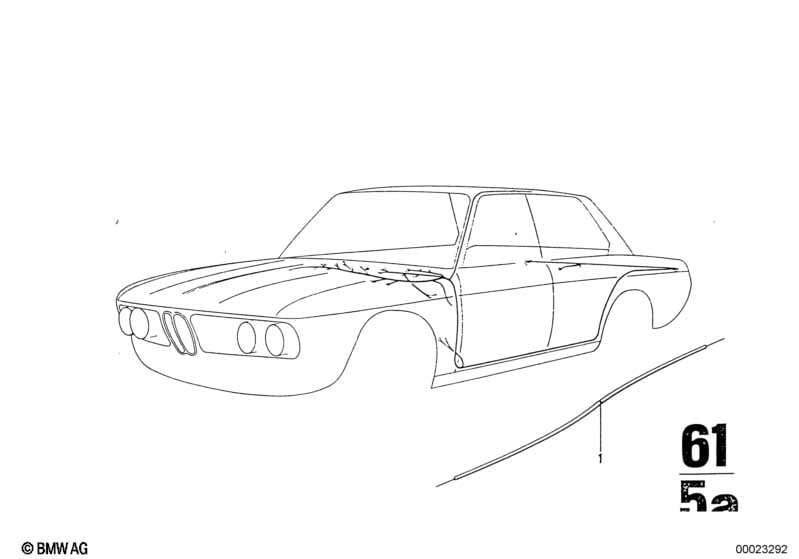

This Cable harness technical drawing provides a detailed breakdown of the assembly for the 2500-3.3Li 3.0S. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1977.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Cable black-violet | 0,75MM? | X | 07119976429 | $1.30 | Shop at ECS Tuning | ||||
| 01 | Cable | B0,75 SCHW-GRÜN | X | 07119976430 | ENDED | Shop at ECS Tuning | ||||
| 01 | Cable black | 1,0MM² | X | 07129955115 | $0.37 | Shop at ECS Tuning | ||||
| 01 | Cable red-black | 1,00 MM? | X | 61121391695 | $1.83 | ENDED | Shop at ECS Tuning | |||
| 01 | Cable red | B1,0 ROT | X | 07129955123 | $0.28 | ENDED | Shop at ECS Tuning | |||
| 01 | Cable black | 1,5MM² | X | 07129955157 | $0.46 | Shop at ECS Tuning | ||||
| 01 | Cable black | 1,5 MM? | X | 61121391708 | $2.43 | Shop at ECS Tuning | ||||
| 01 | Cable black | B2,5 SCHWARZ | X | 07129955213 | ENDED | Shop at ECS Tuning | ||||
| 01 | Cable red | B2,5 ROT | X | 07129955226 | ENDED | Shop at ECS Tuning | ||||
| 01 | Cable black-green | B2,5 SCHW-GRÜN | X | 07129955230 | ENDED | Shop at ECS Tuning | ||||
| 01 | Cable brown | 2,5 MM² | X | 61121391672 | $2.43 | Shop at ECS Tuning | ||||
| 01 | Cable black | 2,5 MM? | X | 61121391673 | $2.43 | Shop at ECS Tuning | ||||
| 01 | Cable blue-yellow | 1,00 MM² | X | 61121391693 | $1.45 | Shop at ECS Tuning | ||||
| 01 | Cable brown | 1,5 MM² | X | 61121391696 | $2.43 | Shop at ECS Tuning | ||||
| 01 | Cable black-red | 1,5 MM? | X | 61121391697 | $2.43 | Shop at ECS Tuning | ||||
| 01 | Cable black-yellow | 1,5 MM? | X | 61121391698 | $2.43 | Shop at ECS Tuning | ||||
| 01 | Cable red-blue | 0,75MM² | X | 61126902615 | $1.45 | Shop at ECS Tuning | ||||
| 01 | Cable blue-yellow | 0,75MM² | X | 61126908722 | $1.45 | Shop at ECS Tuning | ||||
| 01 | Cable black-yellow | 0,75MM? | X | 61126908723 | $1.45 | Shop at ECS Tuning | ||||
| 01 | Cable brown | 0,75MM² | X | 61131391671 | $1.45 | Shop at ECS Tuning |
