Cable connection for BMW 2500-3.3Li 3.0S (1973)

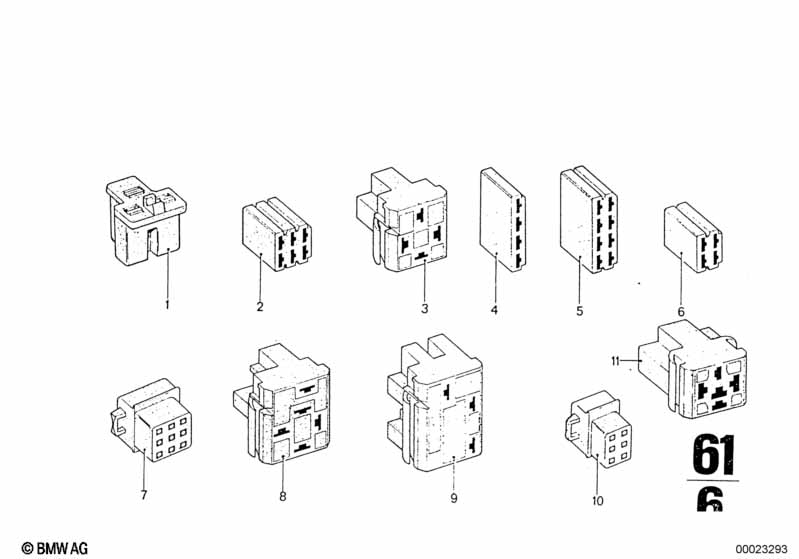

This Cable connection technical drawing provides a detailed breakdown of the assembly for the 2500-3.3Li 3.0S. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1973.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Housing | 1 | 12328608018 | $3.00 | +core | Shop at ECS Tuning | ||||
| 02 | Plug housing | 8 | 61131350498 | ENDED | Shop at ECS Tuning | |||||
| 03 | Plug housing | 1 | 08/1968 | 02/1977 | 61131352846 | ENDED | Shop at ECS Tuning | |||
| 04 | Plug housing | 8 | 61131350850 | ENDED | Shop at ECS Tuning | |||||
| 05 | Plug housing | 4 | 61131350852 | ENDED | Shop at ECS Tuning | |||||
| 06 | Plug housing | 4 | 61131350856 | ENDED | Shop at ECS Tuning | |||||
| 07 | Circular connector | 1 | 61131350865 | ENDED | Shop at ECS Tuning | |||||
| 08 | Plug housing | 1 | 08/1968 | 02/1977 | 61131351277 | ENDED | Shop at ECS Tuning | |||
| 09 | Plug housing | 1 | 08/1968 | 02/1977 | 61131351286 | ENDED | Shop at ECS Tuning | |||
| 10 | Circular connector | 1 | 61131350969 | ENDED | Shop at ECS Tuning | |||||
| 11 | Plug terminal for starter relay | 1 | 08/1968 | 02/1977 | 61131359470 | ENDED | Shop at ECS Tuning |
Notes
- +core = plus core charge (possibility of a return of the old part)
- ENDED = the part has been discontinued (no longer available).
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 2500-3.3Li 3.0S Cable connection?
- This technical diagram illustrates the Cable connection within the Vehicle electrical system group for the 2500-3.3Li 3.0S produced during 1973. It provides a detailed exploded view of the components, identifying key parts such as the Housing (Part #12328608018).
- Which models use the hardware listed in this Cable connection?
- The hardware and components featured in the Cable connection are specific to the 2500-3.3Li 3.0S produced during 1973. These technical specifications ensure that parts like the Housing (12328608018) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Cable connection assembly?
- Each item in the Cable connection corresponds to the numbered list below the illustration. For the 2500-3.3Li 3.0S, you can identify the Housing by locating its position on the schematic, which then links to the official BMW part number 12328608018 for the Vehicle electrical system section.
