Cable connection for BMW 2500-3.3Li 3.0SBav (1973)

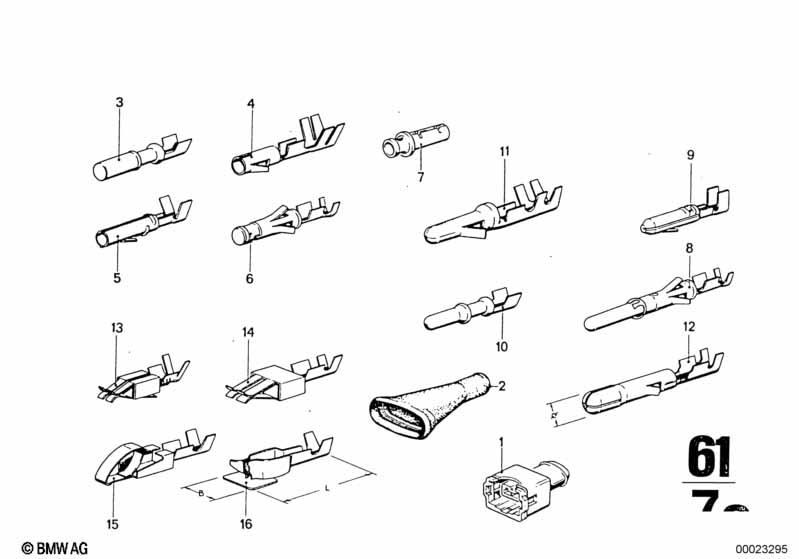

This Cable connection technical drawing provides a detailed breakdown of the assembly for the 2500-3.3Li 3.0SBav. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1973.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 03 | Cable socket round female | D4,7 | X | 61131355496 | $1.13 | ENDED | Shop at ECS Tuning | |||
| 03 | Cable socket round female | D2,1 | X | 61131368621 | $2.25 | Shop at ECS Tuning | ||||
| 04 | Cable socket round female | D3,5 | X | 61131359289 | $0.63 | Shop at ECS Tuning | ||||
| 05 | Cable socket round female | D2,1 | X | 61131353260 | $0.77 | ENDED | Shop at ECS Tuning | |||
| 06 | Cable socket round female | D1,6/L=10,1 | X | 61131365100 | $2.20 | ENDED | Shop at ECS Tuning | |||
| 07 | Cable socket round female | X | 61131371438 | $2.20 | Shop at ECS Tuning | |||||
| 08 | Circular connector | X | 61131359921 | $1.40 | Shop at ECS Tuning | |||||
| 09 | Circular connector | D2,1 | X | 61131350872 | ENDED | Shop at ECS Tuning | ||||
| 10 | Circular connector | D2,1 | X | 61131368620 | $1.23 | ENDED | Shop at ECS Tuning | |||
| 11 | Circular connector | D3,5 | X | 61131362144 | $0.42 | Shop at ECS Tuning | ||||
| 12 | Circular connector | D4,4 | X | 61131357125 | $1.16 | ENDED | Shop at ECS Tuning | |||
| 13 | Contact socket | B=2,85/L=19 | X | 61131357705 | $0.63 | Shop at ECS Tuning | ||||
| 14 | Contact socket | B=4,7/L=19 | X | 61131358924 | $0.77 | Shop at ECS Tuning | ||||
| 15 | Contact socket | B=2,2 | X | 61131355488 | $0.45 | ENDED | Shop at ECS Tuning | |||
| 16 | Contact socket | B=5,0/L=18,6 | X | 61131362479 | $0.80 | ENDED | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
