Cable connection for BMW 2500-3.3Li 2800Bav (1971)

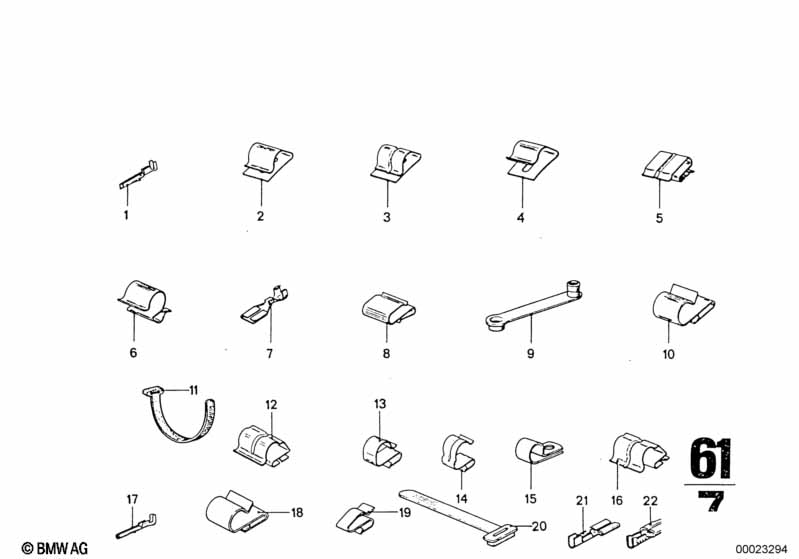

This Cable connection technical drawing provides a detailed breakdown of the assembly for the 2500-3.3Li 2800Bav. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1971.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Circular connector | D2,1 | 7 | 61131350872 | ENDED | Shop at ECS Tuning | ||||
| 02 | Cable clamp | 1 | 61131351135 | $0.41 | ENDED | Shop at ECS Tuning | ||||
| 03 | Cable clamp | 1 | 61131351136 | ENDED | Shop at ECS Tuning | |||||
| 04 | Cable clamp | D=12MM | 1 | 61131355345 | $0.82 | ENDED | Shop at ECS Tuning | |||
| 05 | Cable clamp | D=4,5MM | 1 | 61131353865 | $0.42 | Shop at ECS Tuning | ||||
| 06 | Cable clamp | D=15/B=4 | 1 | 61131353866 | $0.50 | Shop at ECS Tuning | ||||
| 07 | Cable socket female | B=8/L=20 | 20 | 08/1968 | 02/1977 | 61138608021 | $0.55 | ENDED | Shop at ECS Tuning | |
| 08 | Cable clamp | 2 | 12527575212 | $0.78 | Shop at ECS Tuning | |||||
| 09 | Cable holder | 70MM | 16 | 61131353661 | $1.37 | ENDED | Shop at ECS Tuning | |||
| 10 | Cable clamp | D=15/B=4 | 1 | 61131351044 | $0.42 | Shop at ECS Tuning | ||||
| 11 | Cable tie | 2 | 61131357249 | ENDED | Shop at ECS Tuning | |||||
| 12 | Clamp | 2 | 07147202015 | Shop at ECS Tuning | ||||||
| 13 | Cable clamp | D=10MM | 1 | 08/1968 | 02/1977 | 61131354601 | $0.42 | Shop at ECS Tuning | ||
| 14 | Cable clamp | D=12MM | 1 | 61131354602 | $0.44 | Shop at ECS Tuning | ||||
| 16 | Clamp | 1 | 07147202015 | Shop at ECS Tuning | ||||||
| 17 | Cable socket round female | D2,1 | 4 | 08/1968 | 02/1977 | 61131353260 | $0.77 | ENDED | Shop at ECS Tuning |
