Cable connection for BMW 2500-3.3Li 2500 (1971)

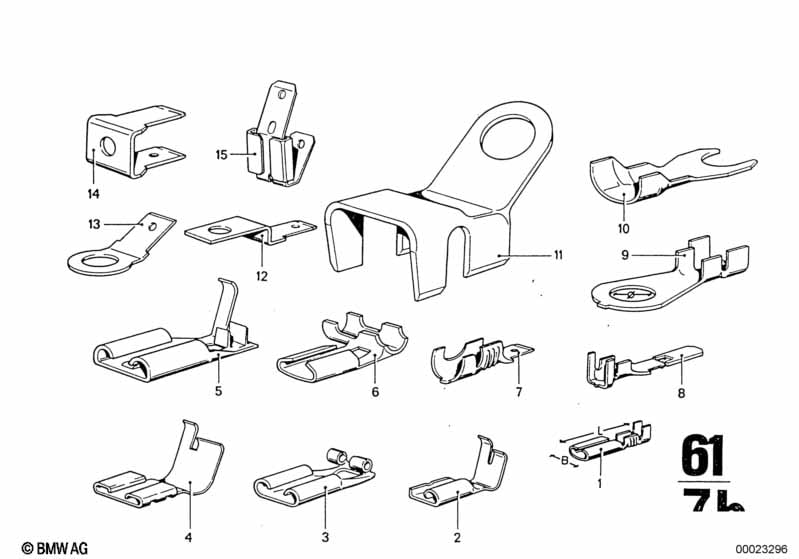

This Cable connection technical drawing provides a detailed breakdown of the assembly for the 2500-3.3Li 2500. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1971.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Cable socket female | 4,8-2,5-BZ-SN | X | 07119975531 | $0.20 | Shop at ECS Tuning | ||||
| 01 | Cable socket female | B=3,7MM/L=14MM | X | 61131357090 | $0.68 | ENDED | Shop at ECS Tuning | |||
| 01 | Cable socket female | B=7,5/L=19,2MM | X | 61138061769 | $0.48 | ENDED | Shop at ECS Tuning | |||
| 01 | Cable socket female | B=11/L=26,9 | X | 61138061785 | $0.80 | Shop at ECS Tuning | ||||
| 01 | Cable socket female | B=8/L=20 | X | 61138608021 | $0.55 | ENDED | Shop at ECS Tuning | |||
| 02 | Cable socket female | 0,5-1,0MM² | X | 61131368534 | $0.38 | ENDED | Shop at ECS Tuning | |||
| 03 | Cable socket female | B=9,1/L=16,8 | X | 61131352577 | $0.95 | Shop at ECS Tuning | ||||
| 04 | Cable socket female | X | 61138061781 | $0.41 | ENDED | Shop at ECS Tuning | ||||
| 04 | Cable socket female | B=7,5/L=19,2MM | X | 61138061769 | $0.48 | ENDED | Shop at ECS Tuning | |||
| 05 | Cable socket female | B=10/L=21 | X | 61131353440 | $1.21 | ENDED | Shop at ECS Tuning | |||
| 06 | Cable socket female | B=7,6/L=16,8 | X | 61131350848 | $0.95 | ENDED | Shop at ECS Tuning | |||
| 07 | Flat-type connector | B=4,8/L=17 | X | 61131361178 | ENDED | Shop at ECS Tuning | ||||
| 07 | Flat-type connector | B=6.5/L=19.2 | X | 61131376755 | $0.21 | ENDED | Shop at ECS Tuning | |||
| 08 | Flat-type connector | B=6,3/L=28 | X | 61131351675 | $0.55 | ENDED | Shop at ECS Tuning | |||
| 08 | Flat-type connector | B=4,8/L=27 | X | 61131359932 | $0.55 | ENDED | Shop at ECS Tuning | |||
| 09 | Cable terminal | D=8.4 | X | 61131362955 | $0.41 | ENDED | Shop at ECS Tuning | |||
| 09 | Cable terminal | D=10,5 | X | 61131364484 | $4.59 | ENDED | Shop at ECS Tuning | |||
| 09 | Cable terminal | D=6,4 | X | 61138061786 | $0.64 | ENDED | Shop at ECS Tuning | |||
| 10 | Cable terminal | B6-2,5 | X | 07119975953 | ENDED | Shop at ECS Tuning | ||||
| 12 | Cable terminal | D=5,3 | X | 12318002351 | $1.24 | Shop at ECS Tuning | ||||
| 13 | Cable terminal | D=5,3 | X | 61138061788 | $0.64 | ENDED | Shop at ECS Tuning | |||
| 14 | Twin plug | B=4,3 | X | 61311353825 | $0.70 | ENDED | Shop at ECS Tuning | |||
| 15 | Twin plug | B=6,4 | X | 61138061771 | $0.33 | ENDED | Shop at ECS Tuning |
