Battery for BMW 2500-3.3Li 2800 (1975)

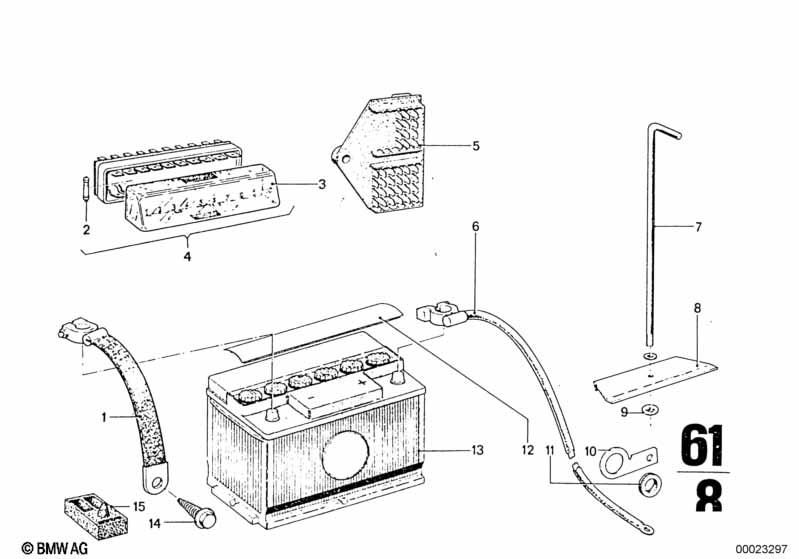

This Battery technical drawing provides a detailed breakdown of the assembly for the 2500-3.3Li 2800. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1975.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Battery cable negative | 1 | 61121350767 | ENDED | Shop at ECS Tuning | |||||
| 02 | Fuse | 8A | 2 | 61138760138 | $1.83 | Shop at ECS Tuning | ||||
| 02 | Fuse | 16A | 3 | 61138760140 | $1.83 | Shop at ECS Tuning | ||||
| 02 | Fuse | 5A | 4 | 61138760141 | $0.14 | Shop at ECS Tuning | ||||
| 03 | Cover | 1 | 08/1968 | 02/1977 | 61131350837 | ENDED | Shop at ECS Tuning | |||
| 03 | Cover | 1 | 05/1971 | 02/1977 | 61131352400 | $14.74 | Shop at ECS Tuning | |||
| 04 | Fuse box | 1 | 08/1968 | 02/1977 | 61131350811 | $119.41 | ENDED | Shop at ECS Tuning | ||
| 04 | Fuse box | 1 | 08/1968 | 02/1977 | 61131354054 | ENDED | Shop at ECS Tuning | |||
| 04 | Fuse box | 1 | 09/1973 | 02/1977 | 61131357062 | $142.85 | ENDED | Shop at ECS Tuning | ||
| 06 | Battery cable (plus pole) | 1 | 08/1968 | 02/1977 | 61121351767 | ENDED | Shop at ECS Tuning | |||
| 06 | Battery cable (plus pole) | 1 | 08/1968 | 02/1977 | 61121355434 | $44.63 | ENDED | Shop at ECS Tuning | ||
| For vehicles with National version sweden |
=Yes |
|||||||||
| 06 | Battery cable (plus pole) | 1 | 08/1968 | 02/1977 | 61121353842 | $42.13 | ENDED | Shop at ECS Tuning | ||
| 07 | Battery hold down | 232MM | 1 | 08/1968 | 02/1977 | 61211353680 | $8.52 | Shop at ECS Tuning | ||
| 08 | Chain tensioner | 1 | 08/1968 | 02/1977 | 61211350100 | ENDED | Shop at ECS Tuning | |||
| 09 | Axial securing clip | 15X5,7MM | 1 | 08/1968 | 02/1977 | 07149158226 | Shop at ECS Tuning | |||
| For vehicles with National version sweden |
=Yes |
|||||||||
| 10 | Bracket | 1 | 08/1968 | 02/1977 | 61131354070 | $1.13 | Shop at ECS Tuning | |||
| 11 | Damper ring | 18X28X6 | 1 | 08/1968 | 02/1977 | 61611353754 | $1.18 | Shop at ECS Tuning | ||
| 12 | Battery cover | 50AH/55AH | 1 | 08/1968 | 02/1977 | 61211356429 | $1.70 | ENDED | Shop at ECS Tuning | |
| 12 | Battery cover | 50AH/55AH | 1 | 09/1973 | 02/1977 | 61211356429 | $1.70 | ENDED | Shop at ECS Tuning | |
| 13 | Battery energy-package | 55AH VARTA | 1 | 61219061639 | ENDED | Shop at ECS Tuning | ||||
| 13 | Empty BMW battery | 55AH | 1 | 08/1968 | 02/1977 | 61218381708 | Shop at ECS Tuning | |||
| 14 | Sheet metal screw | B6,5X16 | 1 | 08/1968 | 02/1977 | 12138530118 | $0.40 | ENDED | Shop at ECS Tuning | |
| 15 | Spacer | 2 | 08/1968 | 02/1977 | 61211350825 | $1.20 | Shop at ECS Tuning | |||
Notes
- ENDED = the part has been discontinued (no longer available).
